General
Manufacturer
Beetronics
Item Number
10VG7M
Previous Model
10VG3
Product Name

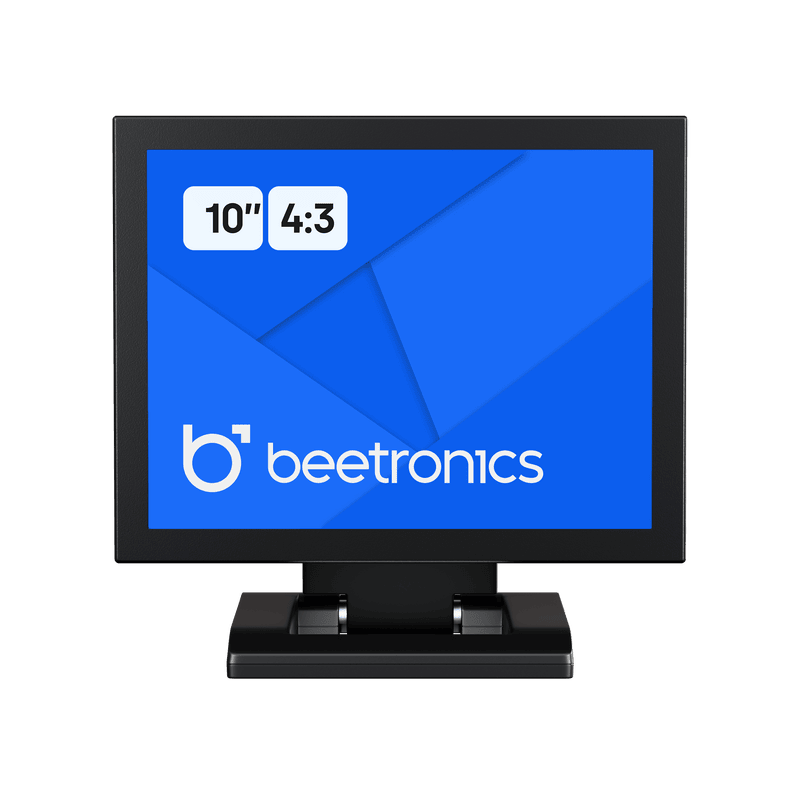

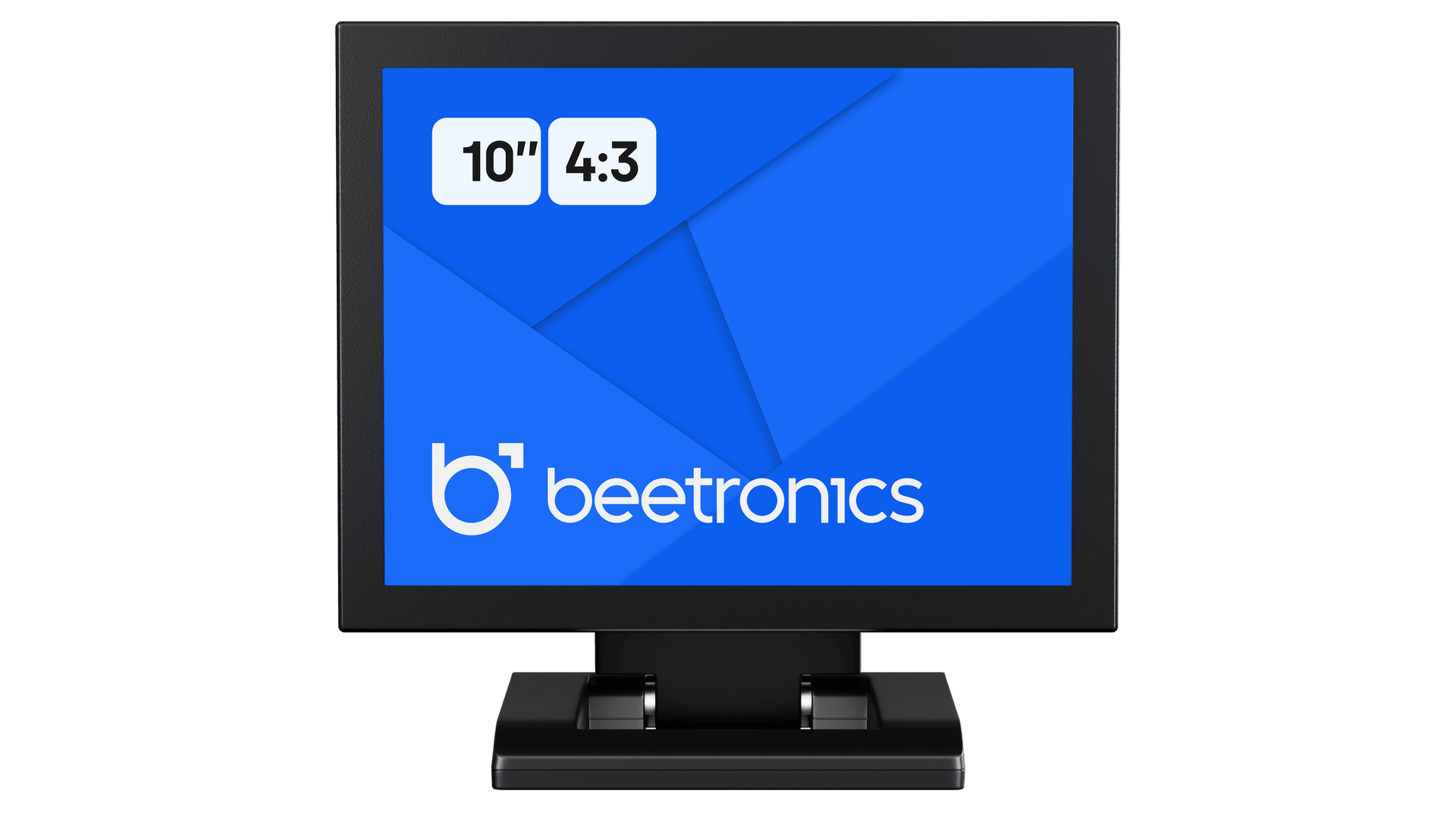

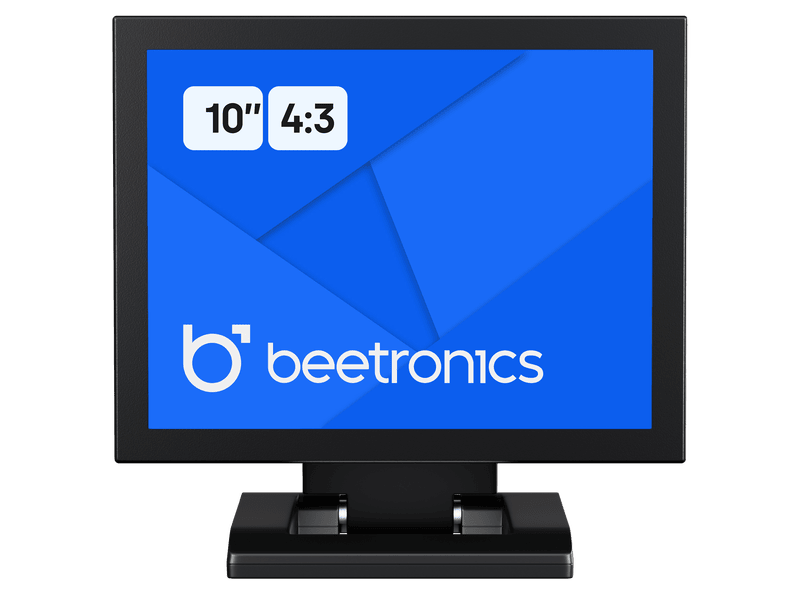

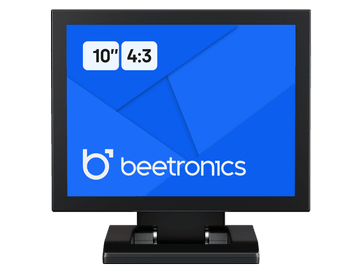

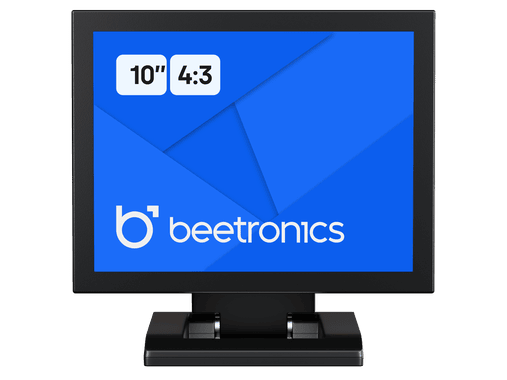

10 Inch Monitor Metal (4:3)
Warranty
2 Years
Datasheet
User Manual
Quickstart
Panel
Diagonal Size
9.7 Inches (249 mm)
Panel Type
IPS-LCD
4:3
Response Time
10 ms
MTBF
50K
1024 x 768
1920 x 1080 (max), 640 x 480 (min)
132 PPI
Backlight
LED
Brightness
350 cd/m2
Contrast
800:1
Colour Encoding System
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical

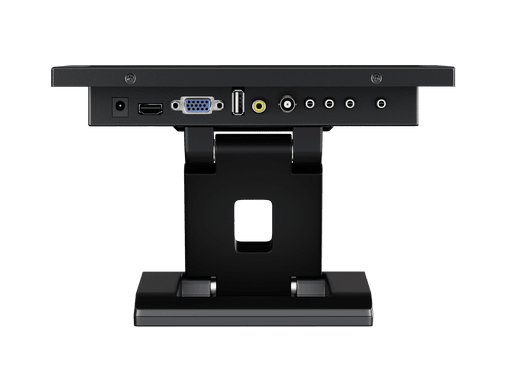

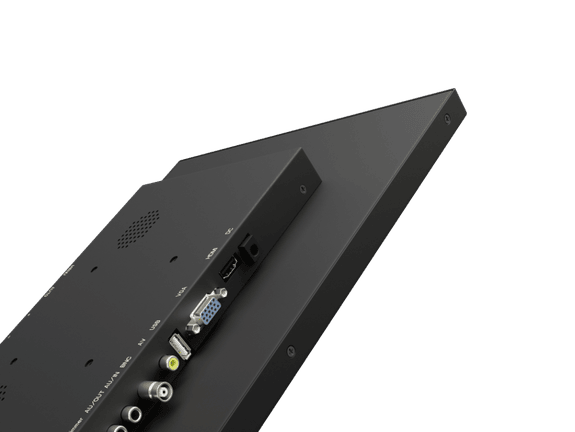

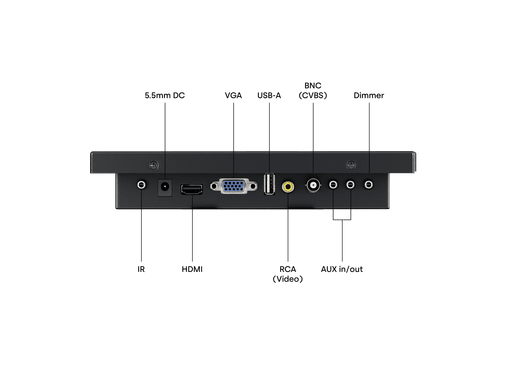

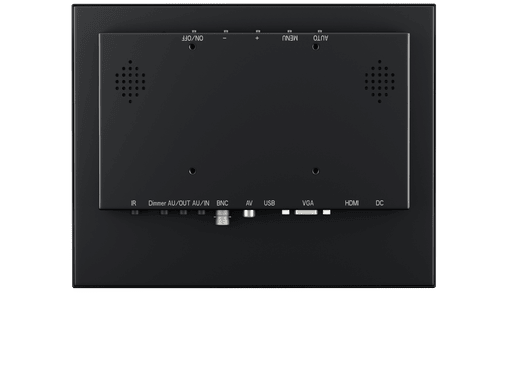

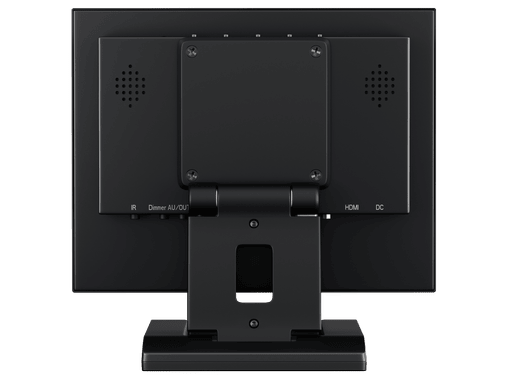

Connectivity
HDMI
1x
VGA
1x
1x
RCA Video
1x
1x Integrated USB Media Player
AUX Input (3.5mm)
1x
AUX Output (3.5 mm)
1x
Size & Weight
Colour
Black

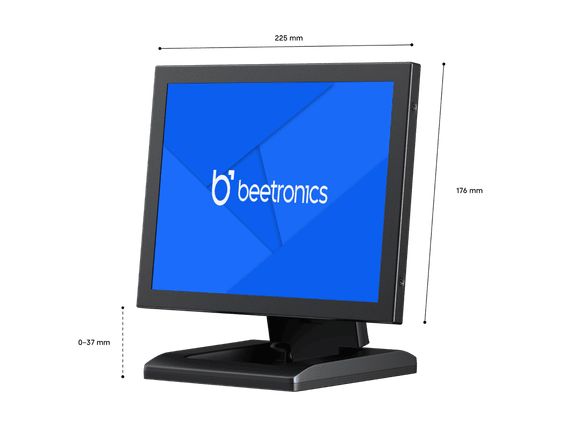

Dimensions (Without Stand)
8.9 x 6.9 x 1.4 Inches
Image Size
7.8 x 5.9 Inches
Weight
2.2 lbs (3.1 lbs With Stand)
Technical Drawing
3D Drawing
Features & Functions
Audio
Integrated Speakers
Key-Lock
The control buttons can be blocked.
Auto-On
Automatically powers on when it receives current or a signal.
Dimmable
Adjustable Backlight Brightness
Mirroring
Teleprompter compatible. Image can be horizontally and vertically mirrored.
Orientation
Landscape, Portrait, Face-up
The monitor is equipped with a built-in USB media player.
Power
Input Voltage
DC 9-36V
Consumption
Typical 7.3 W (On), 0.4 W (Standby)
Power Supply
External DC (Power Adapter Included)
Power Adapter
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
Power Adapter Output Connector
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
20% - 85% Non-Condensing

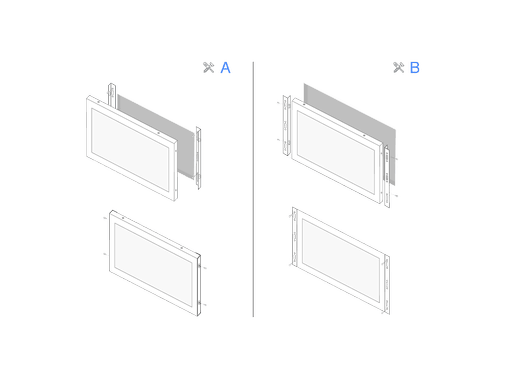

Mounting

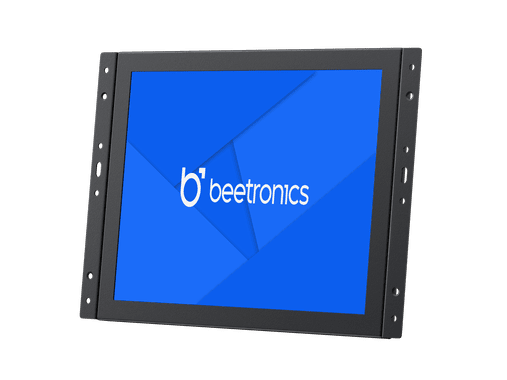

Flush Mount

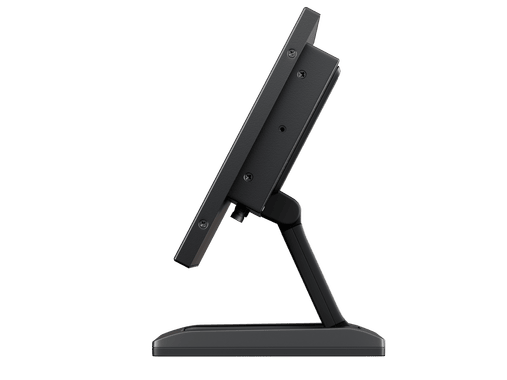

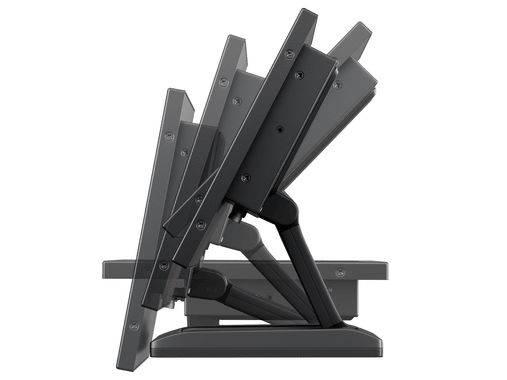

Stand
Adjustable and Detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC

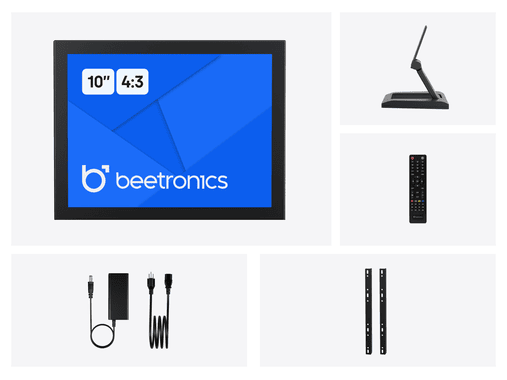

Package Content
Includes

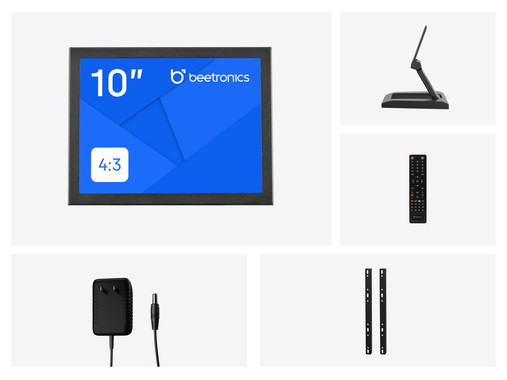

Monitor, Stand, Remote Control, Mounting Strips, AC Power Adapter, Manual
Compatible Accessories
Infrared Extension
Dimmer
Rack Mounting
Wall Mounting
Stand
VDK3 Included as Standard
