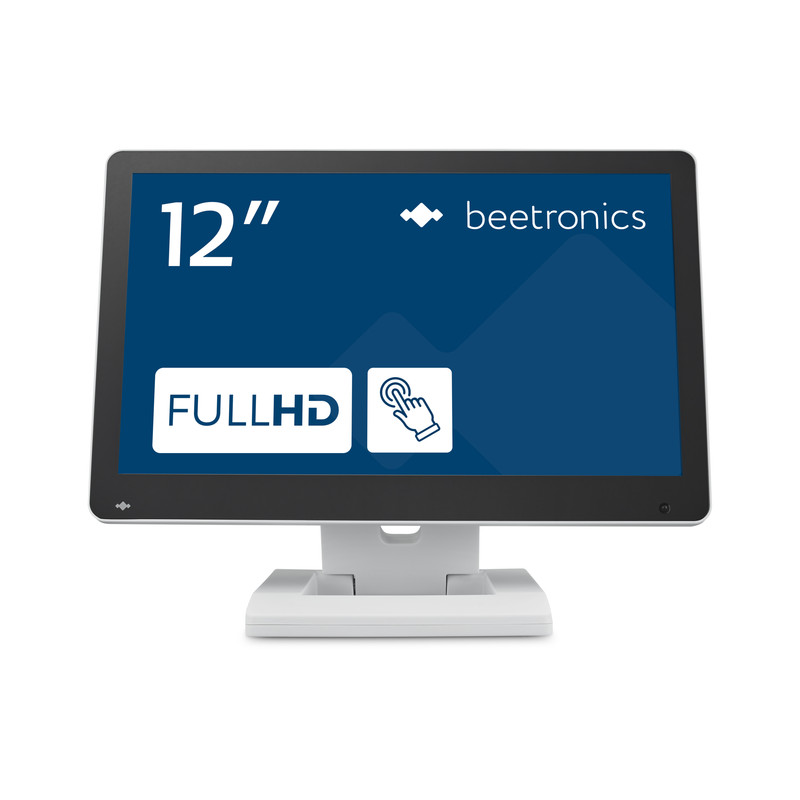

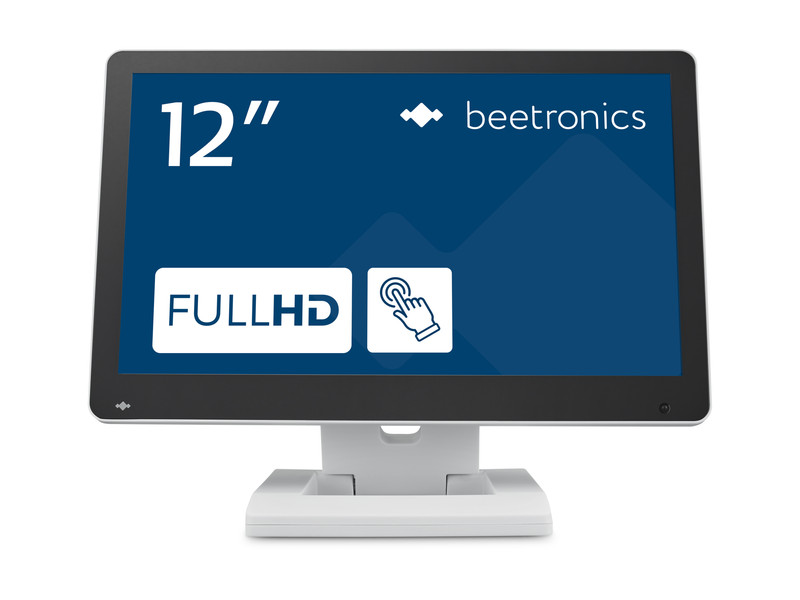

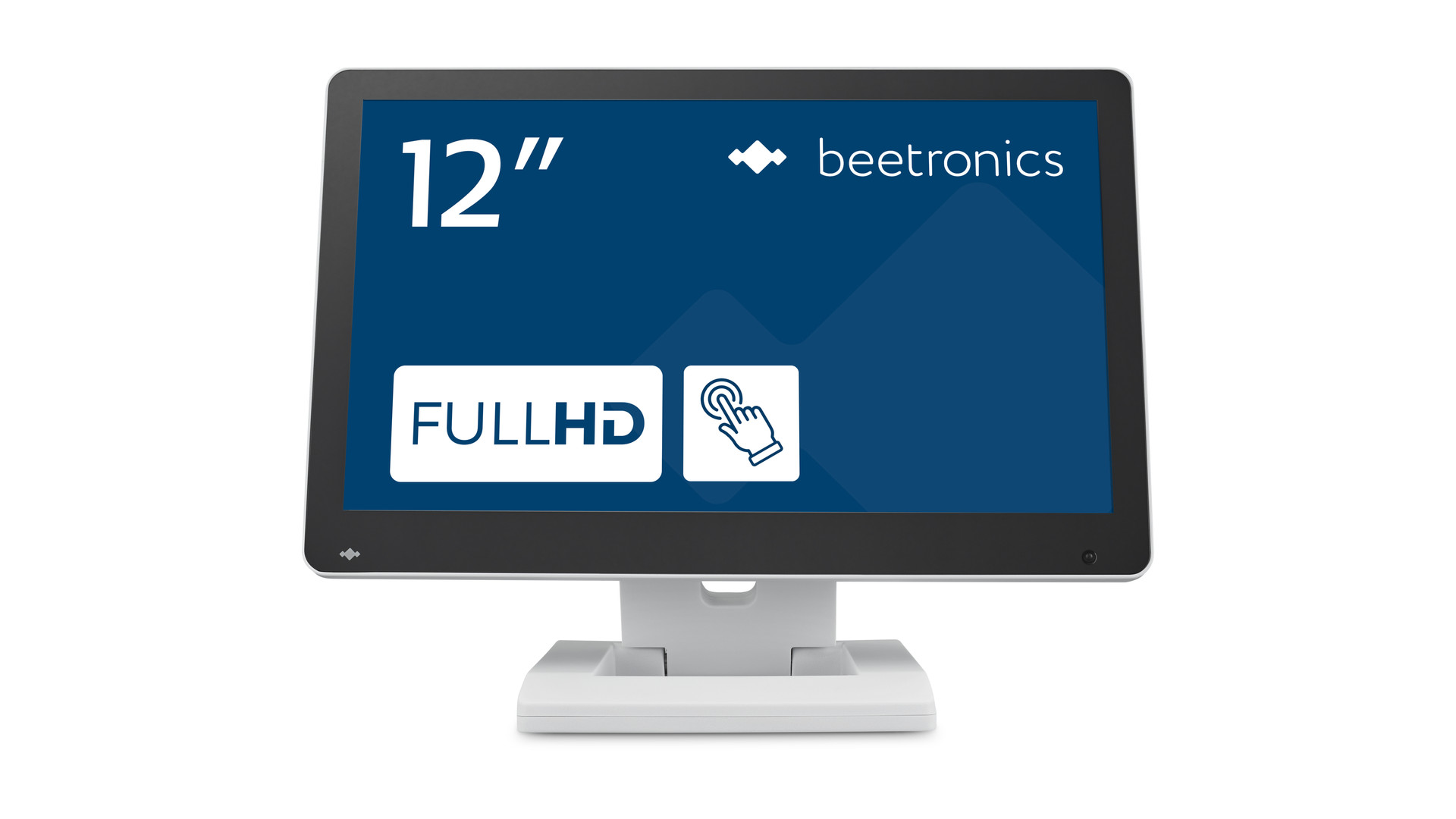

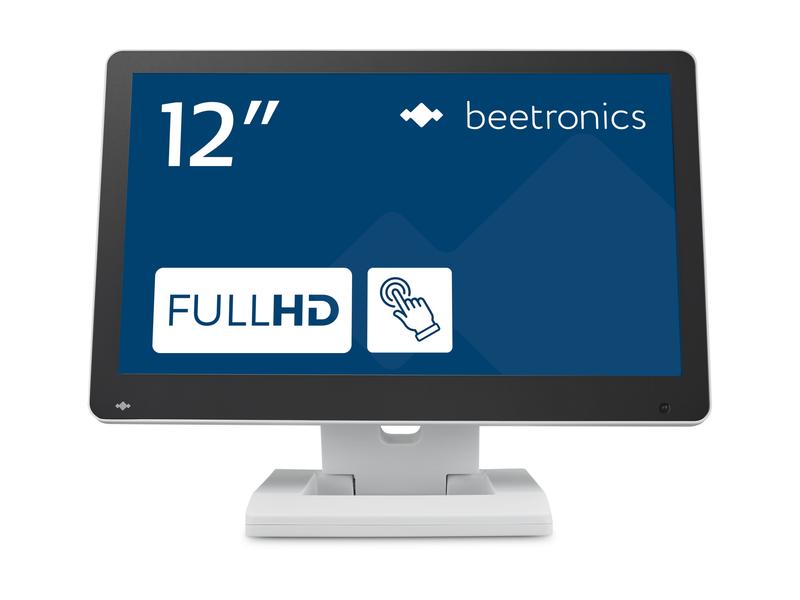

12 inch touchscreen (white)

Model: 12TS3W

Product Information

Full HD multi-touch panel
Windows, Mac, Linux & Android compatible
Desktop and wall mountable
11.2 x 7.0 x 1.4 inches

End of life

See alternative

General

Manufacturer

Beetronics

Item Number

12TS3W

Product Name

12 inch touchscreen (white)

Warranty

2 Years

Datasheet

Download PDF

Manual

Download PDF

Supported Operating Systems

Windows

Windows 8, 10, 11

Windows Embedded

Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise

macOS

Sequoia, Sonoma, Ventura

Linux

All Linux Distributions

Panel

Diagonal Size

11.6 Inches (296 mm)

Aspect Ratio

16:9 (4:3 Adjustable)

Native Resolution

1920 x 1080

Supported Resolutions

1920 x 1080 (max), 640 x 480 (min)

Pixels Per Inch

184 PPI

Brightness

400 cd/m2

Contrast

700:1

Colour Encoding System

PAL/NTSC/SECAM

Viewing Angle

178° Horizontal, 178° Vertical

Touch Technology

Capacitive, 10-Point Multi-Touch (PCAP)

Touch Control

Stylus, Hand, Glove

Connectivity

HDMI

1x

VGA

1x

BNC (CVBS)

1x

RCA Video

1x

USB-A

Only for Touchscreen Functionality

AUX Output (3.5 mm)

1x

Size & Weight

Colour

White

Technical Drawing

Download PDF

Features & Functions

Audio

Integrated Speakers

Key-Lock

The control buttons can be blocked.

Auto-On

Automatically powers on when it receives current or a signal.

Dimmable

Adjustable Backlight Brightness

Mirroring

Teleprompter compatible. Image can be horizontally and vertically mirrored.

Power

Input Voltage

DC 9-33V

Power Adapter

Input: AC100-240V, 50/60Hz , Output: 12V-2A

Environmental

Operating Temperature

-4°F to +140°F

Storage Temperature

-4°F to +158°F

Operating Humidity

20% - 85% Non-Condensing

Mounting

Wall Mount

VESA 75x75mm

Flush Mount

Possible, no accessories available

Stand

Adjustable and Detachable

Certifications & Standards

IP Rating

IP65 Front Panel

Certifications

CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC

Package Content

Includes

Touchscreen, AC Power Adapter, Remote Control, USB Cable, Stand, Manual

Download manual PDF (button) 2D Drawing (PDF) Datasheet (PDF)
