General
Manufacturer
Beetronics
Item Number
13TS7
Previous Model
13TS3
Product Name

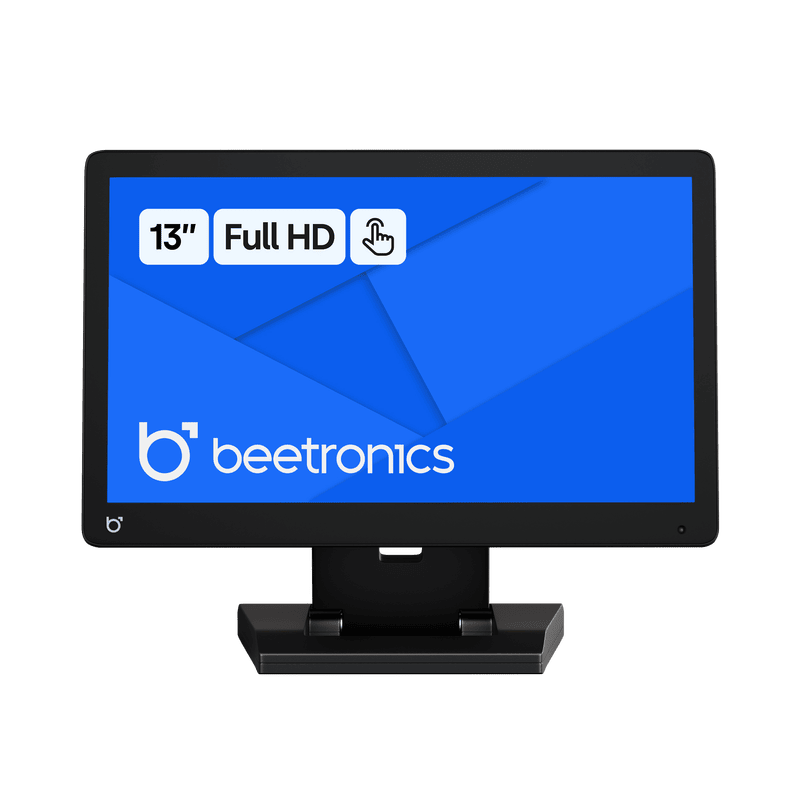

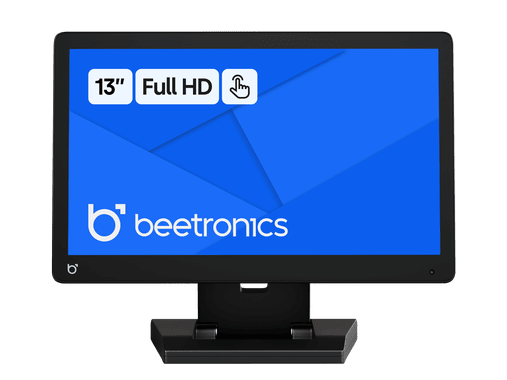

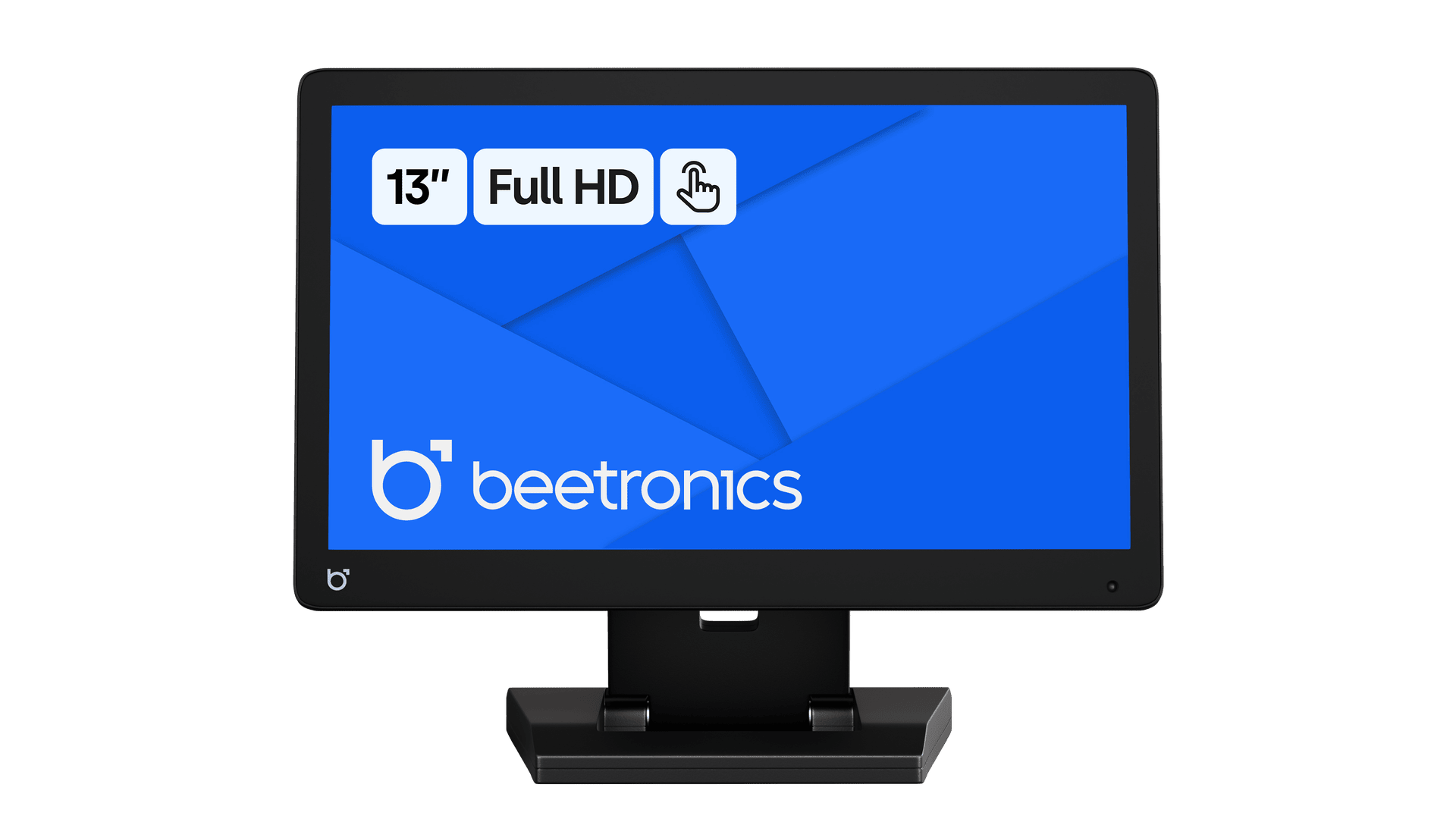

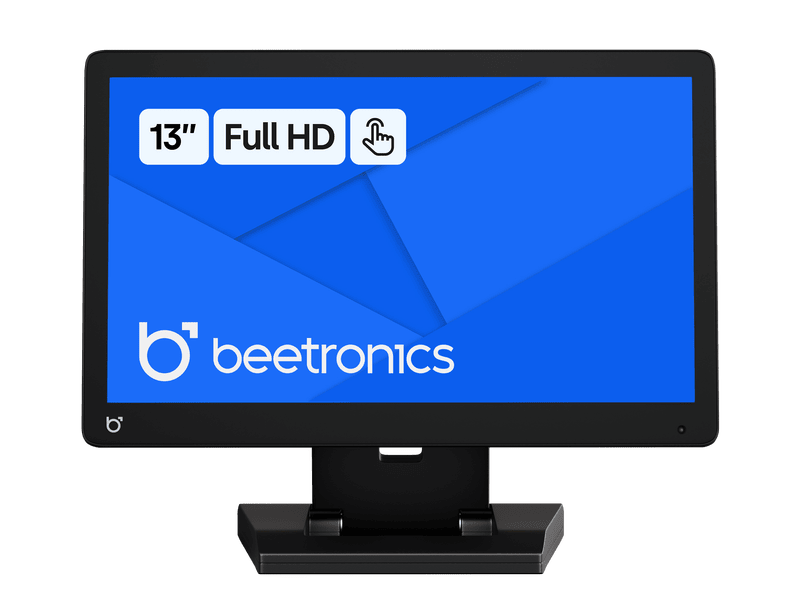

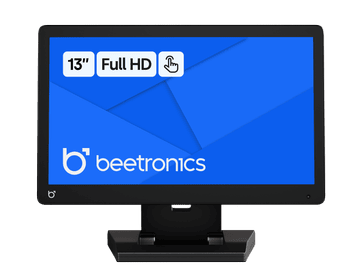

13 Inch Touchscreen
Warranty
2 Years
Datasheet
Drivers
User Manual
Quickstart
Supported Operating Systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Sequoia, Sonoma, Ventura
Linux
All Linux Distributions
ChromeOS
All ChromeOS Versions
Brightsign
All BrightsignOS Versions
Samsung DeX
All Samsung DeX Versions
Panel
13.3 Inches (337 mm)
IPS-LCD
16:9 (4:3 Adjustable)
10 ms
50K
1920 x 1080
1920 x 1080 (max), 640 x 480 (min)
166 PPI
LED
300 cd/m2
1400:1
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical
Tempered Glass
Capacitive, 10-Point Multi-Touch (PCAP)
Stylus, Hand, Glove

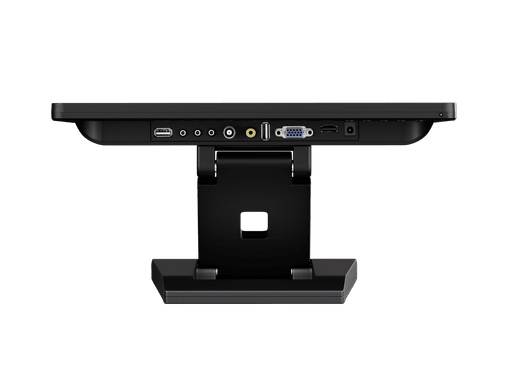

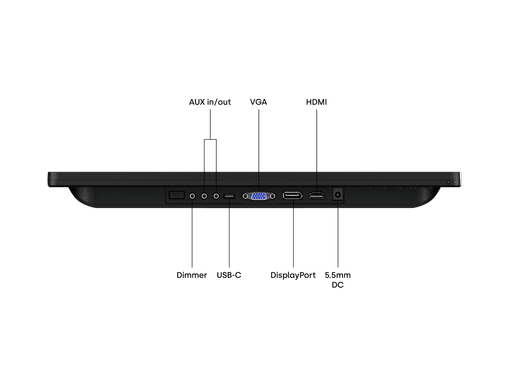

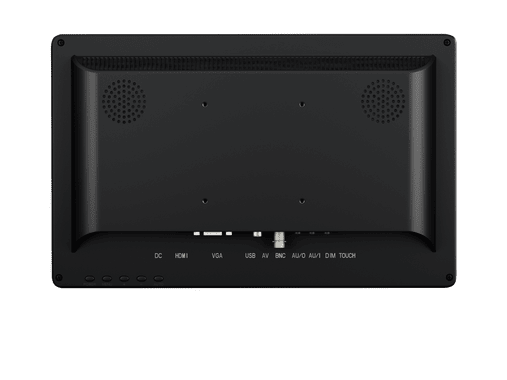

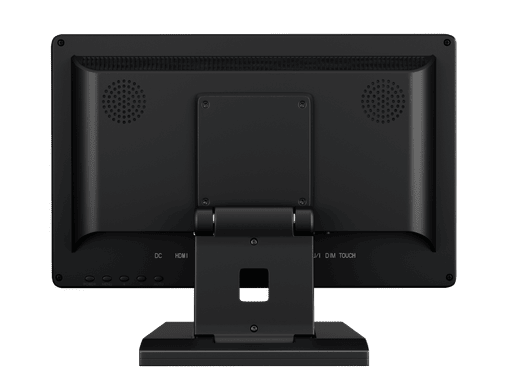

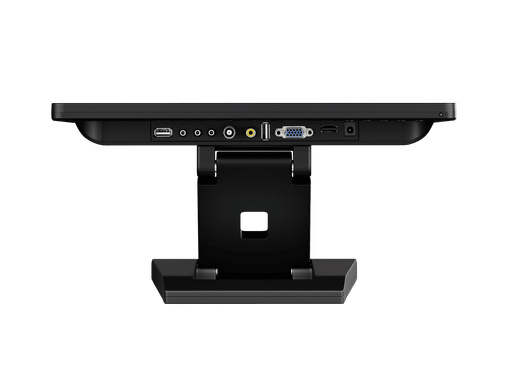

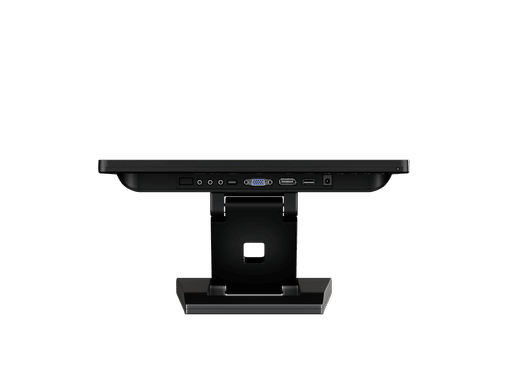

Connectivity
1x
1x
1x
1x
Only for Touchscreen Functionality
1x
Size & Weight
Colour
Black

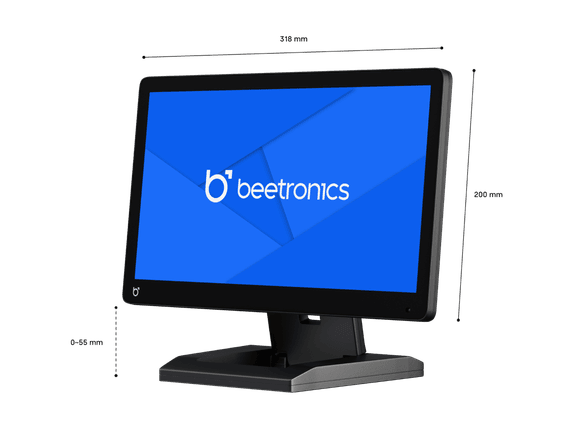

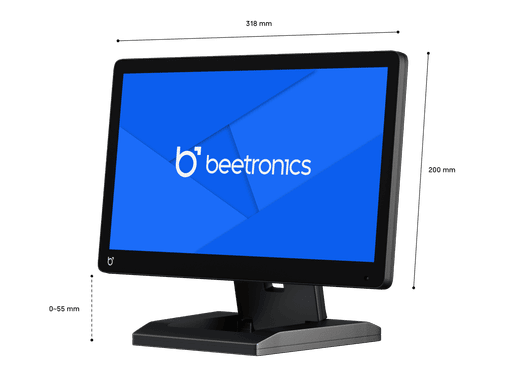

Dimensions (Without Stand)
12.5 x 7.9 x 1.3 Inches
11.5 x 6.6 Inches
2.2 lbs (3.5 lbs With Stand)
Technical Drawing
3D Drawing
Features & Functions

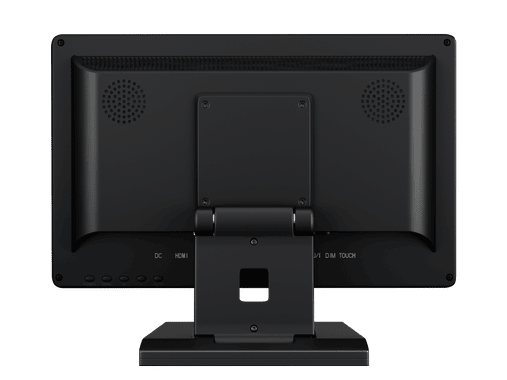

Integrated Speakers
The control buttons can be blocked.
Automatically powers on when it receives current or a signal.
Adjustable Backlight Brightness
Teleprompter compatible. Image can be horizontally and vertically mirrored.

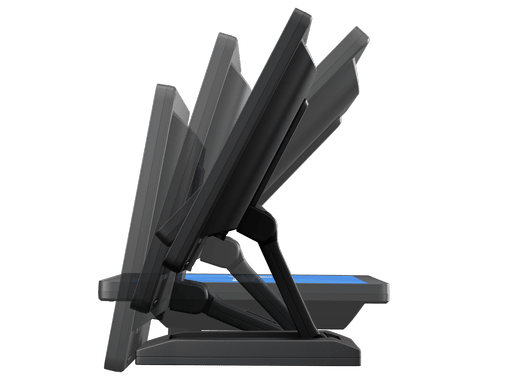

Landscape, Portrait, Face-up
Power
DC 9-36V
Typical 9.1 W (On), 0.4 W (Standby)
External DC (Power Adapter Included)
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
20% - 85% Non-Condensing
Mounting
Flush Mount
Possible, no accessories available

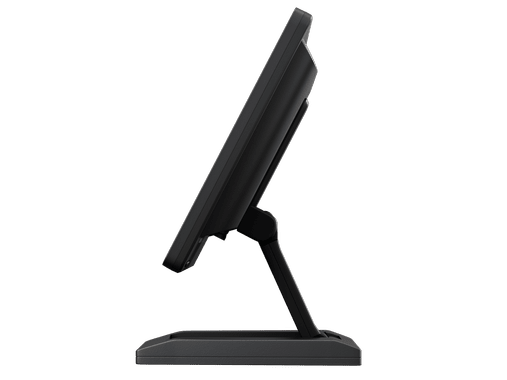

Stand

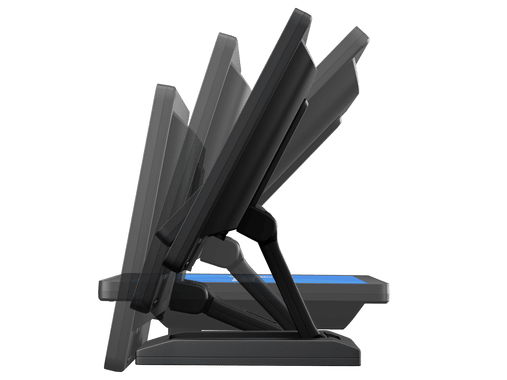

Adjustable and Detachable
Certifications & Standards
IP65 Front Panel
IK08
Certifications
CE, FCC, RoHS, REACH, WEEE, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC, CAN ICES-003(A)/NMB-003(A)

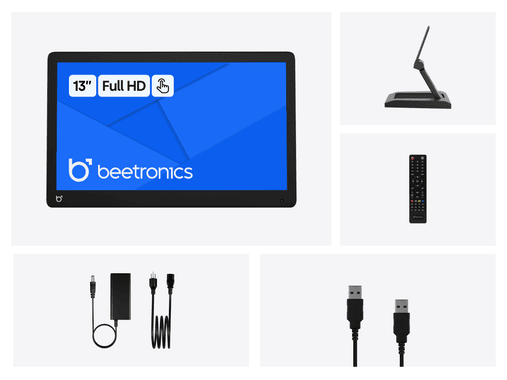

Package Content
Includes

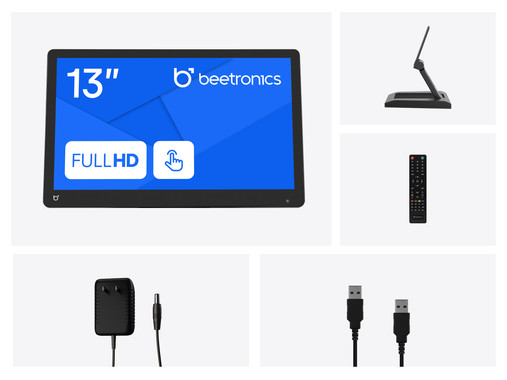

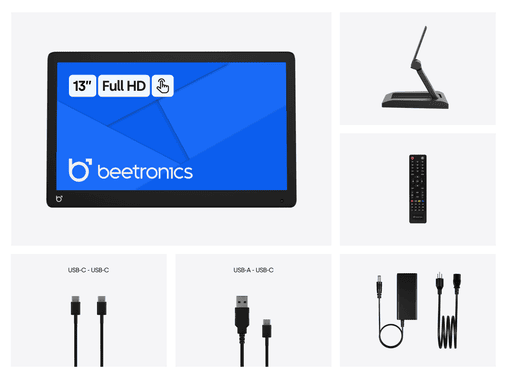

Touchscreen, AC Power Adapter, Remote Control, USB Cable, Stand, Manual
Compatible Accessories
Infrared Extension
Rack Mounting
Wall Mounting
Stand
VDK4 Included as Standard
Touch Pen
