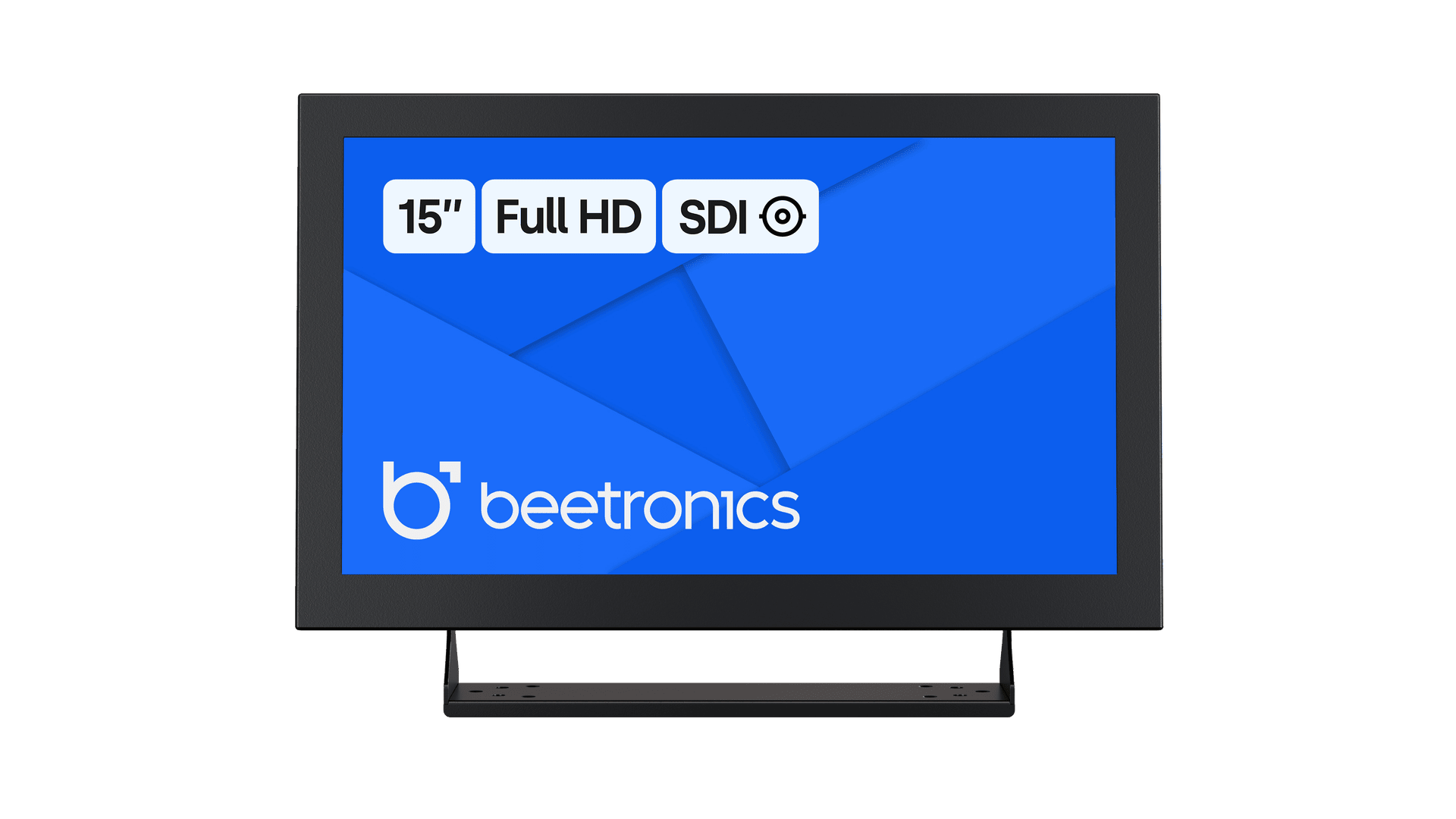

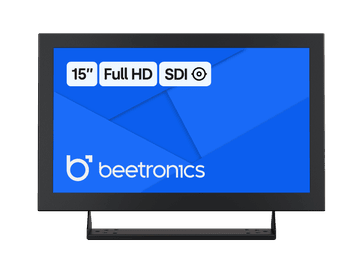

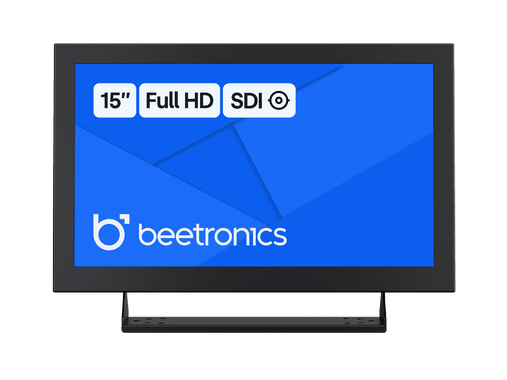

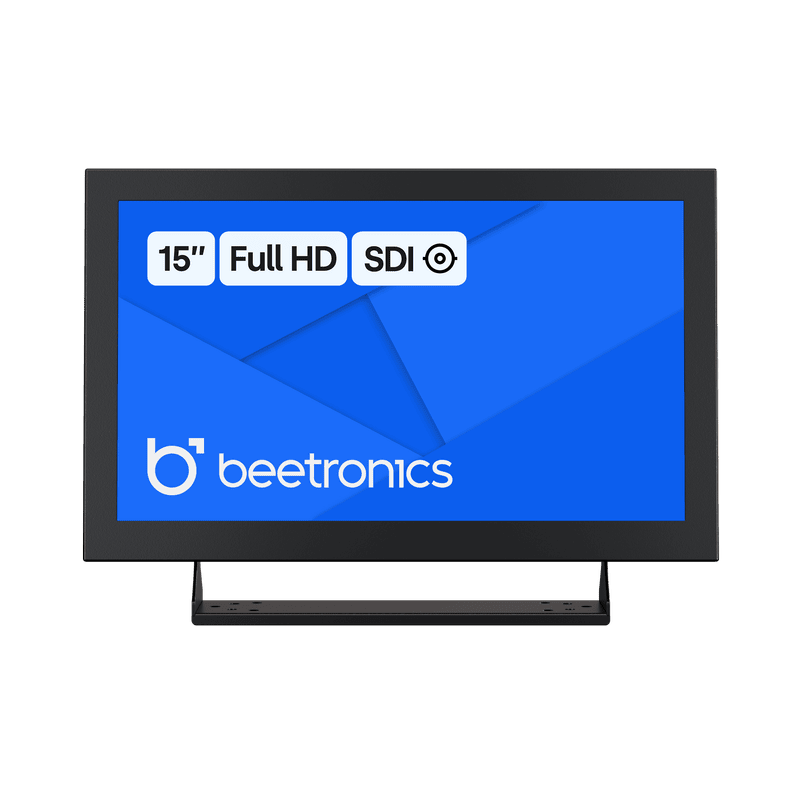

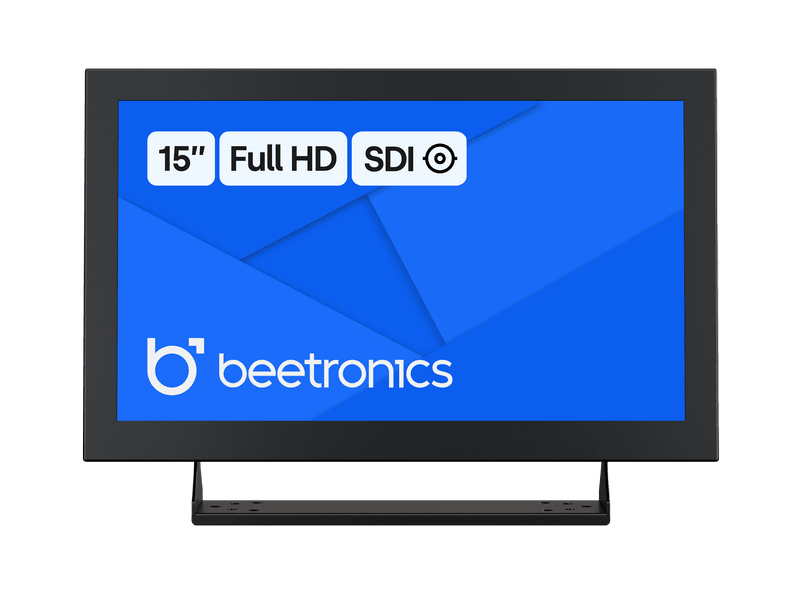

15 Inch Monitor Metal SDI

Model: 15SDI7M

93 units in stock

Product Information

1920 x 1080 resolution (Full HD)
Input: HDMI (input & output), SDI (2x input & 2x output)
Mounting: Flush, embedded, wall, desktop
External dimensions: 15.1 x 9.4 x 1.6 inches

$929.00

Order by 4:30 PM ET for same-day shipping

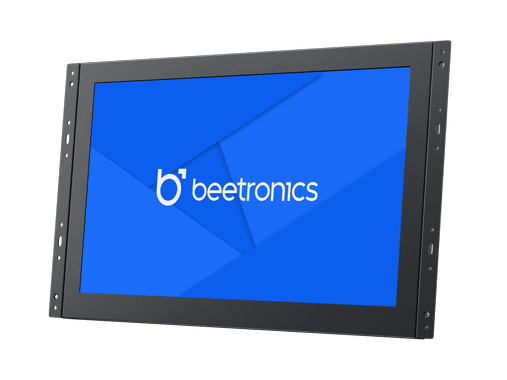

This 15 inch Full HD monitor delivers best-in-class picture quality with excellent 178° viewing angles. The 15 inch monitor has a sturdy metal housing and is ideal for desktop, flush and wall mounting. The 15SDI7M can be easily connected to multiple HDMI, and SDI sources as well as daisy chained to other screens thanks to the inputs and outputs available.

Outstanding Full HD Image Quality

Fitted with a native Full HD IPS panel, the monitor delivers superior image quali

Versatile Connectivity

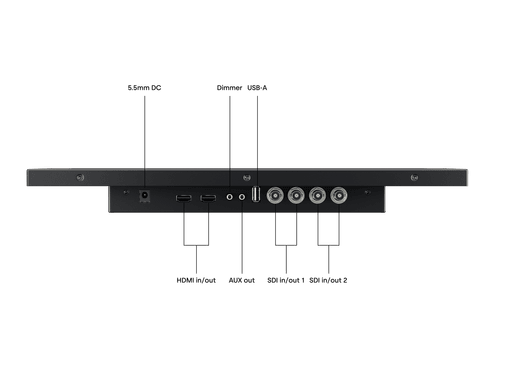

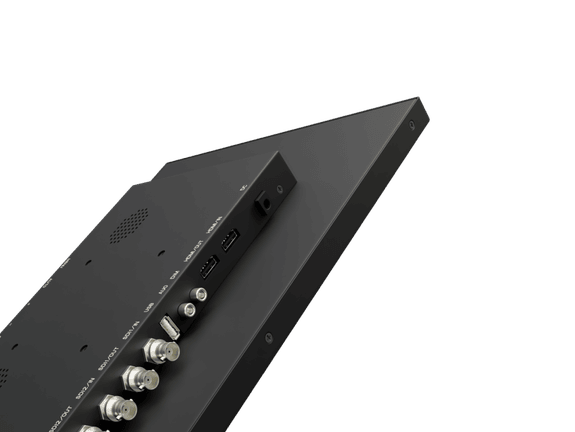

The 15SDI7M has an HDMI input and output and two SDI inputs and outputs. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on when it detects current or a video signal.

Designed for Professional Use

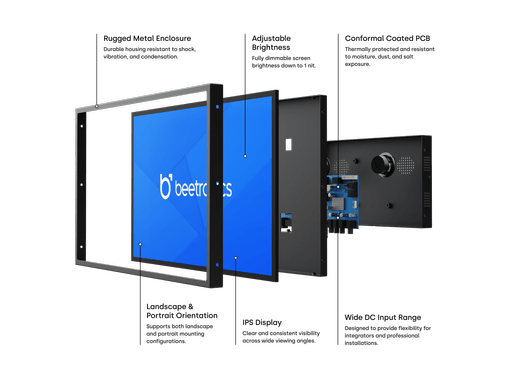

The 15SDI7M is designed for continuous operation and professional use. The monitor is manufactured with high-quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9 to 36 Volts and features a fully dimmable backlight.

Mounting Options

Flush-Mount

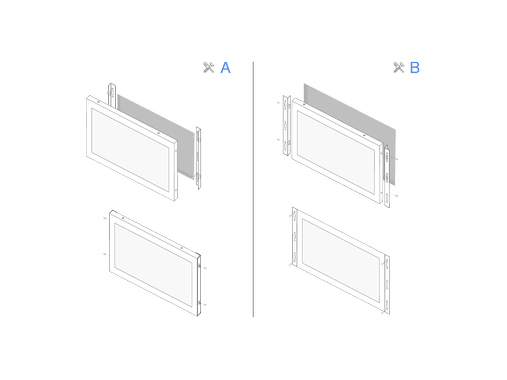

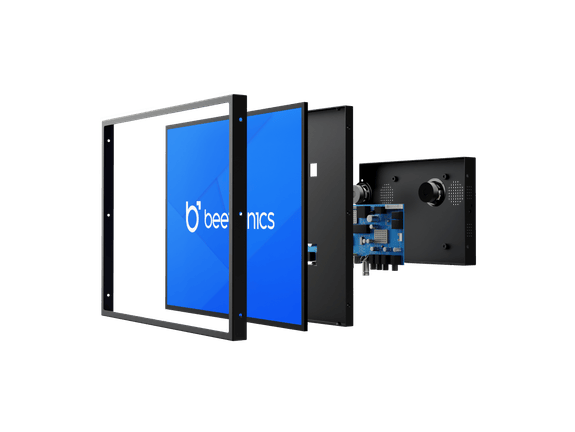

The monitor is designed for flush mounting, requiring no cooling or ventilation. It includes mounting strips as a standard feature, and its housing can be easily disassembled. This design provides exceptional flexibility, offering various installation options for smooth, seamless integration into nearly any environment.

Wall Mount

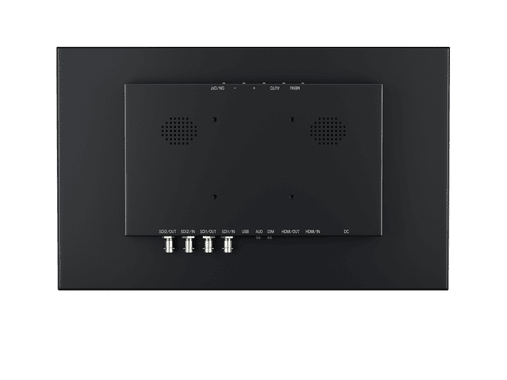

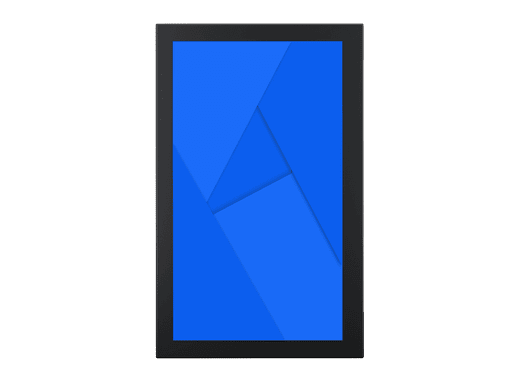

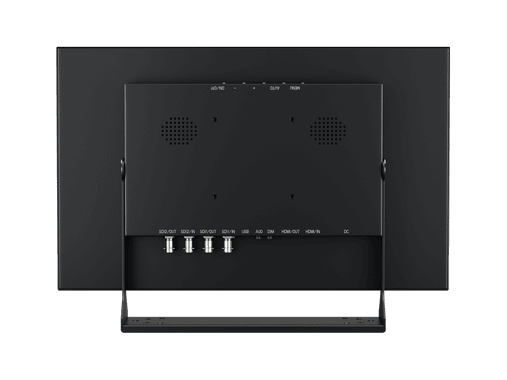

The monitor includes a universal 75mm VESA mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

Stand

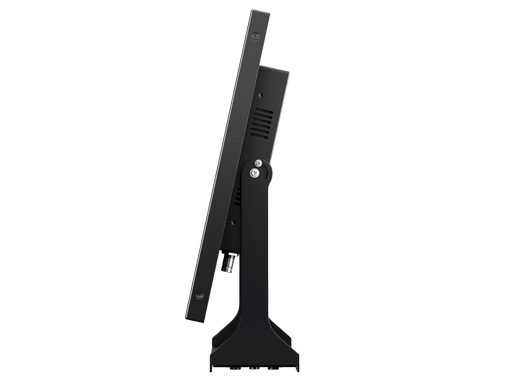

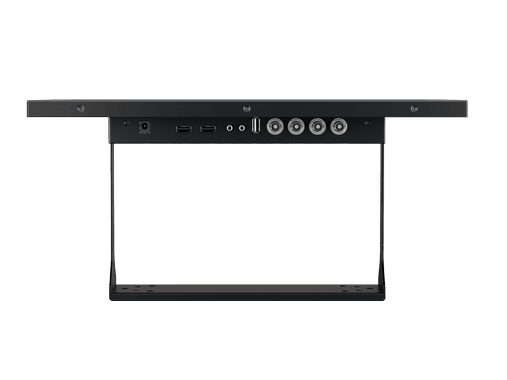

The monitor comes with a durable metal bracket that allows for 180-degree tilting. The bracket features screw holes for secure mounting to a surface, making it ideal for desktop, wall, or ceiling installations. If needed, the bracket can be easily removed, giving access to the universal 75mm VESA mount. This allows the monitor to be mounted using a variety of universal stands or brackets in both landscape and portrait orientations.

General

Manufacturer

Beetronics

Item Number

15SDI7M

Product Name

15 Inch Monitor Metal SDI

Warranty

2 Years

Datasheet

Download PDF

User Manual

Download PDF

Quickstart

Download PDF

Panel

Diagonal Size

15.6 Inches (396 mm)

Panel Type

IPS-LCD

Aspect Ratio

16:9 (4:3 Adjustable)

Response Time

10 ms

MTBF

50K

Native Resolution

1920 x 1080

Supported Resolutions

1920 x 1080 (max), 640 x 480 (min)

Pixels Per Inch

146 PPI

Backlight

LED

Brightness

350 cd/m2

Contrast

700:1

Colour Encoding System

PAL/NTSC/SECAM

Viewing Angle

178° Horizontal, 178° Vertical

Connectivity

HDMI input

HDMI output

USB-A

1x Integrated USB Media Player

SDI input (3G)

SDI output

AUX Input (3.5mm)

AUX Output (3.5 mm)

Size & Weight

Colour

Black

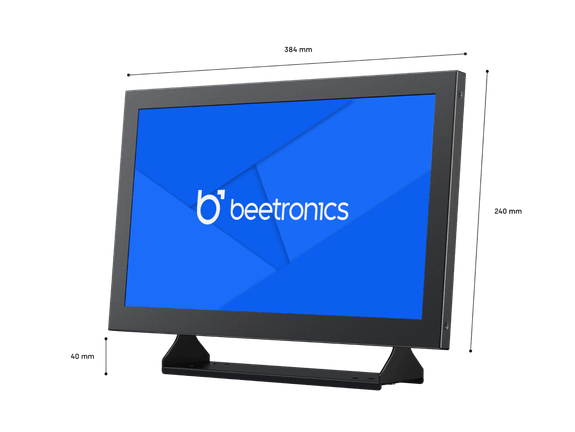

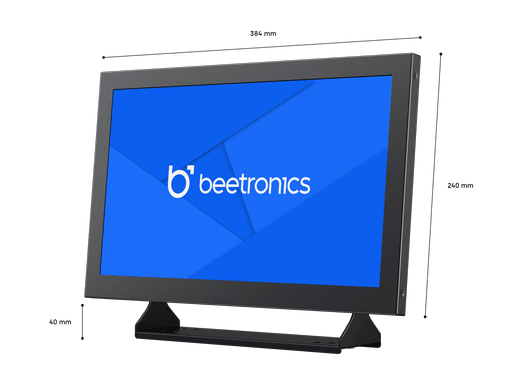

Dimensions (Without Stand)

15.1 x 9.4 x 1.6 Inches

Image Size

13.6 x 7.7 Inches

Weight

5.3 lbs (7.0 lbs With Stand)

Technical Drawing

Download PDF

3D Drawing

Download CAD/STP

Features & Functions

Audio

Integrated Speakers

Key-Lock

The control buttons can be blocked.

Auto-On

Automatically powers on when it receives current or a signal.

Dimmable

Adjustable Backlight Brightness

Mirroring

Teleprompter compatible. Image can be horizontally and vertically mirrored.

Orientation

Landscape, Portrait, Face-up

USB Media Player

The monitor is equipped with a built-in USB media player.

Power

Input Voltage

DC 9-36V

Consumption

Typical 19.6 W (On), 0.4 W (Standby)

Power Supply

External DC (Power Adapter Included)

Power Adapter

Input: AC100-240V, 50/60Hz , Output: 19V-1.5A

Power Adapter Output Connector

DC Barrel Plug 2.1mm x 5.5mm

Environmental

Max. Non-Stop Operating Time

24/7

Operating Temperature

-4°F to +140°F

Storage Temperature

-4°F to +158°F

Operating Humidity

20% - 85% Non-Condensing

Mounting

Wall Mount

VESA 75x75mm

Flush Mount

Mounting Strips Included

Stand

Adjustable and Detachable

Certifications & Standards

Certifications

CE, FCC, RoHS, REACH, WEEE, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC, CAN ICES-003(A)/NMB-003(A)

Package Content

Includes

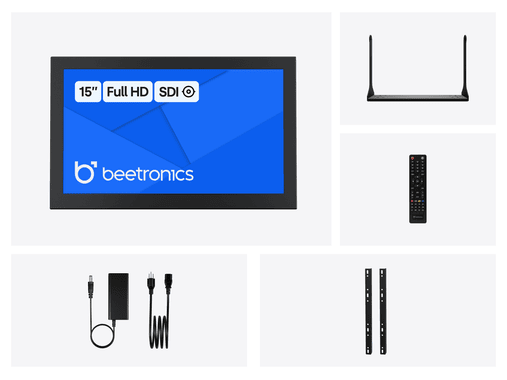

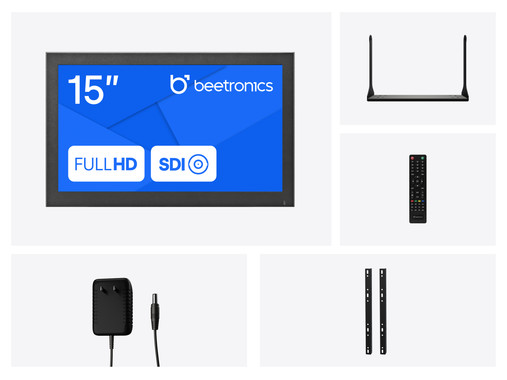

Monitor, Stand, Remote Control, Mounting Strips, AC Power Adapter, Manual

Compatible Accessories

Dimmer

Compatible With External Dimmer (DMK7/DMK8)

Rack Mounting

Compatible With 19 Inch Rack Mount Kit (RMK2)

Wall Mounting

Compatible With Flat Wall Mount Bracket (VWB1)
