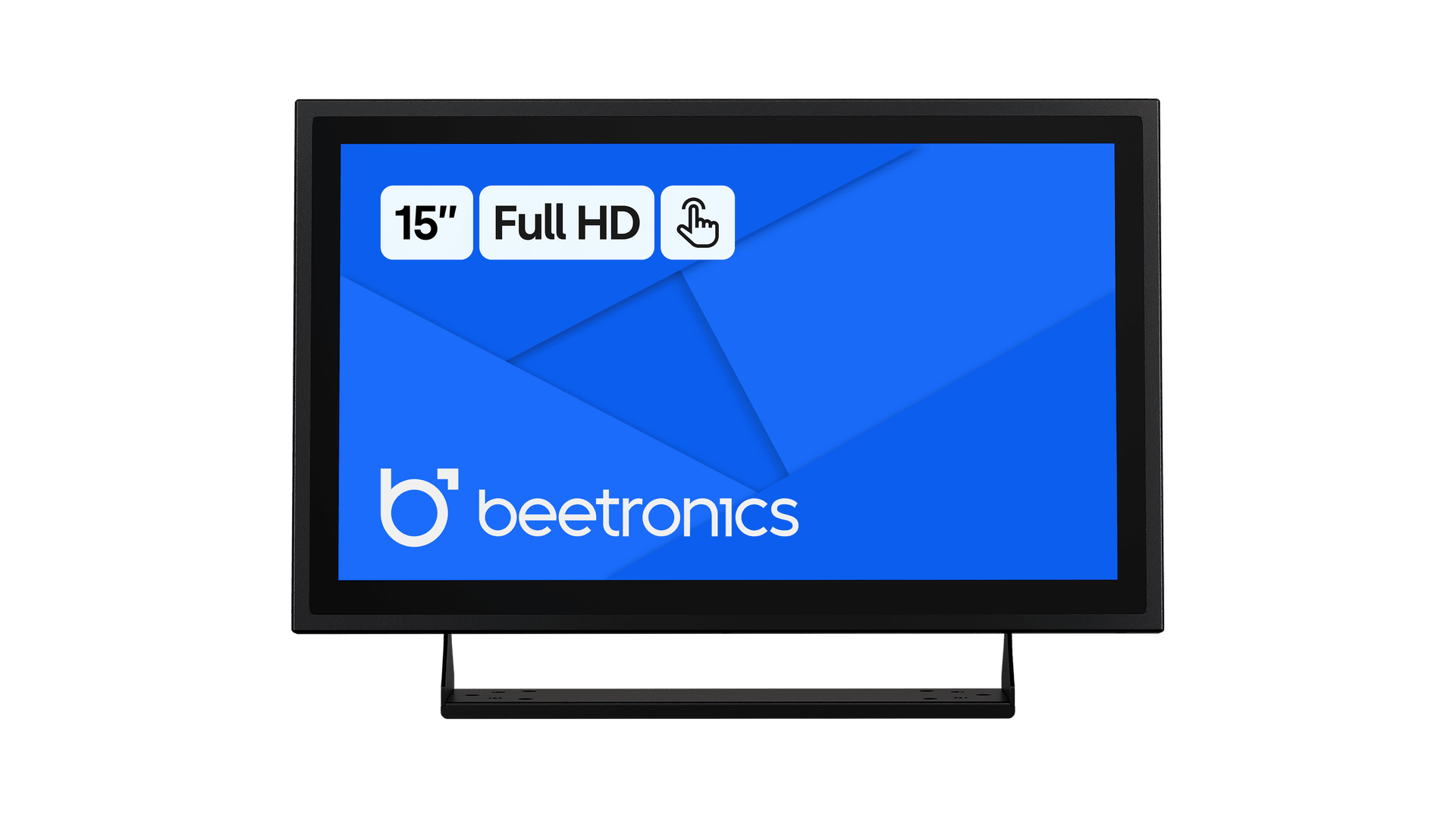

15 Inch Touchscreen Metal
Model: 15TS7M
100+ units in stock
15 Inch Touchscreen Metal
15 Inch Touchscreen Metal
15 Inch Touchscreen Metal
15 Inch Touchscreen Metal
15 Inch Touchscreen Metal
15 Inch Touchscreen Metal
15 Inch Touchscreen Metal
15 Inch Touchscreen Metal
15 Inch Touchscreen Metal
15 Inch Touchscreen Metal

15 Inch Touchscreen Metal

Model: 15TS7M
100+ units in stock
  1. Full HD multi-touch panel
  2. Input: HDMI, DisplayPort, USB-C, VGA
  3. Mounting: Flush, embedded, wall, desktop
  4. External dimensions: 16.0 x 9.4 x 1.6 inches
  5. More specifications
Display Type
Monitor
Touchscreen
Order by 5:00 pm ET for Delivery on Monday
  • Description
  • Specifications
  • Connectivity
  • Downloads

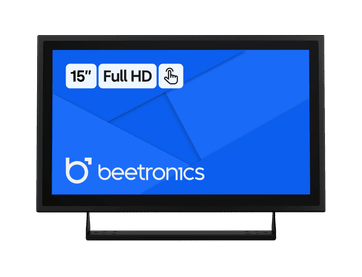

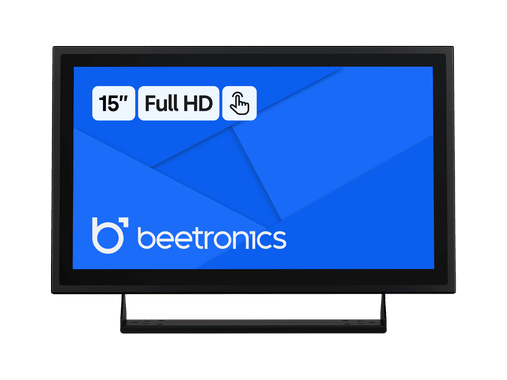

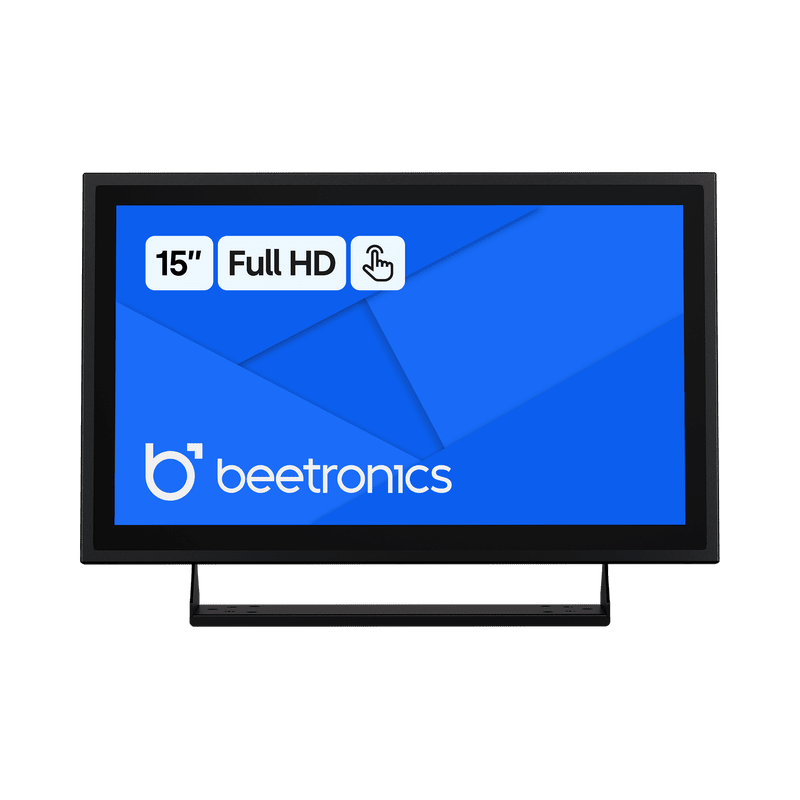

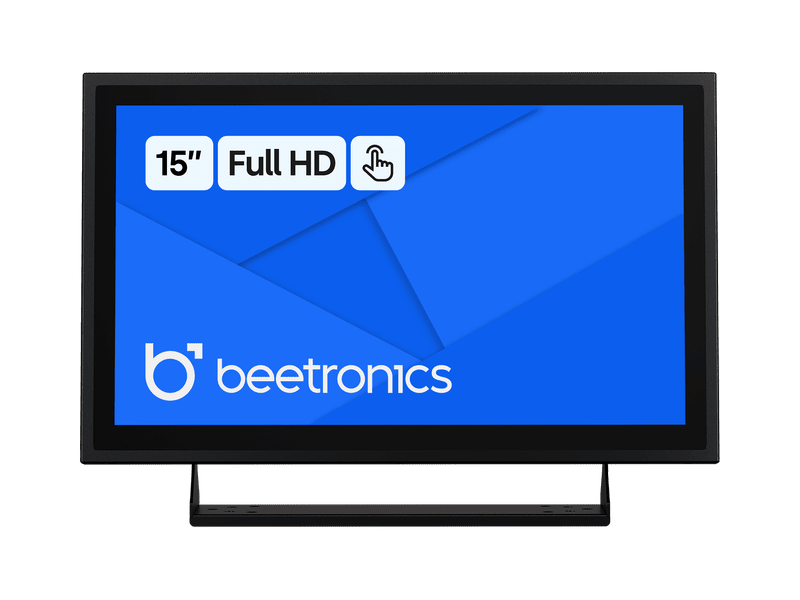

This Full HD 15 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 15TS7M delivers best-in-class picture quality with excellent 178° viewing angles and is compatible with devices running a Windows, macOS, ChromeOS or Linux operating system. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.

Full HD Multi-Touch Panel

Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colors and excellent 178° viewing angles. The 15TS7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.

15 Inch Touchscreen Metal

Compatible With Windows,
macOS, ChromeOS and Linux

The 15-inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The monitor offers versatile connectivity and can be connected via HDMI, DisplayPort, USB-C, or VGA for the display. The touch functionality can easily be activated via USB-C or the included USB-A cable. Once connected to the source, the display is automatically recognised and is immediately ready for use.

15 Inch Touchscreen Metal

Designed for Professional Use

The 15TS7M is designed for continuous operation and professional use. The touchscreen is manufactured with high-quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

15 Inch Touchscreen Metal

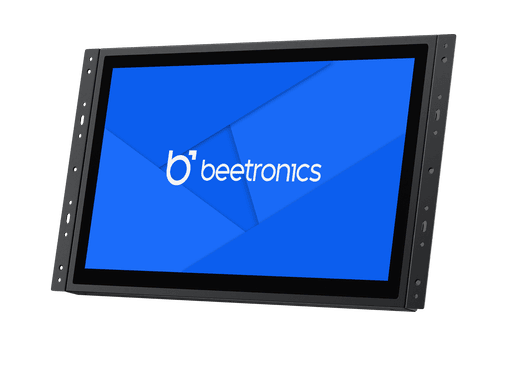

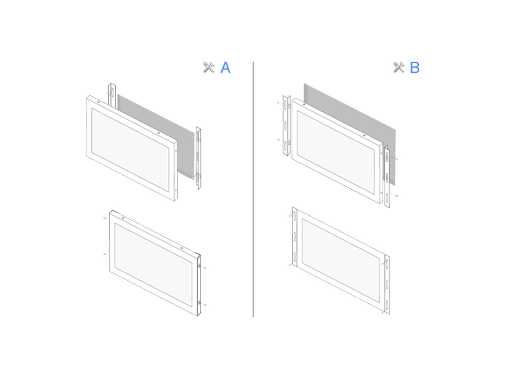

Easily Integrated

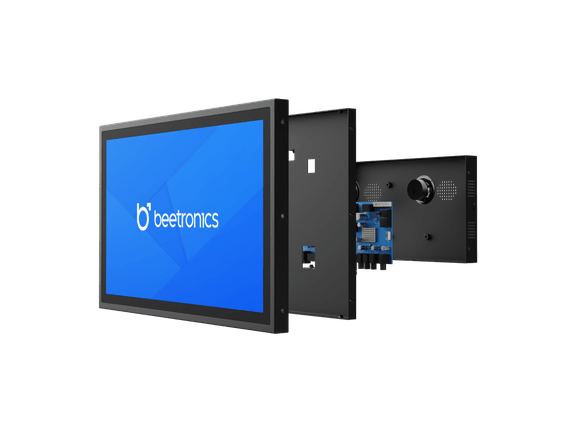

Thanks to numerous mounting options, the 15 inch metal touchscreen can be seamlessly integrated into any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to embed the monitor in any environment.

15 Inch Touchscreen Metal

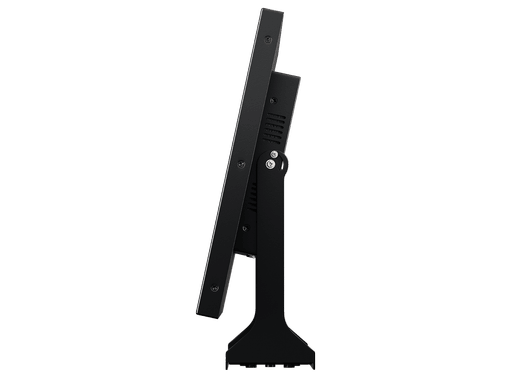

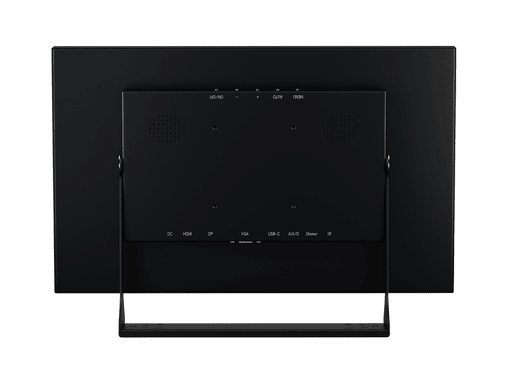

Desktop and Wall Mounting

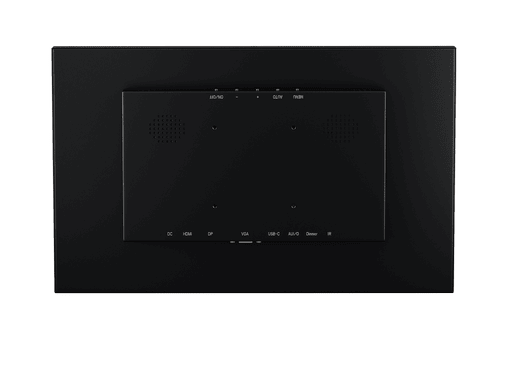

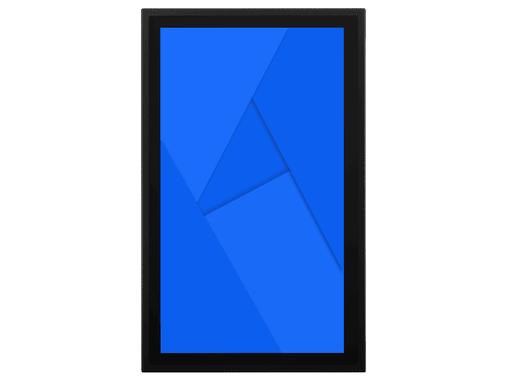

The Beetronics 15TS7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.

15 Inch Touchscreen Metal
General
Manufacturer
Beetronics
Item Number
15TS7M
Previous Model
15TS5M
Product Name
15 Inch Touchscreen Metal
Warranty
2 Years
Datasheet
User Manual
Quickstart
Supported Operating Systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Sequoia, Sonoma, Ventura
Linux
All Linux Distributions
ChromeOS
All ChromeOS Versions
Brightsign
All BrightsignOS Versions
Panel
Diagonal Size
15.6 Inches (395 mm)
Panel Type
IPS-LCD
16:9 (4:3 Adjustable)
Response Time
10 ms
MTBF
50K
1920 x 1080 (max), 640 x 480 (min)
Backlight
LED
Brightness
350 cd/m2
Contrast
700:1
Colour Encoding System
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical
Surface
Tempered Glass
Capacitive, 10-Point Multi-Touch (PCAP)
Touch Control
Stylus, Hand, Glove

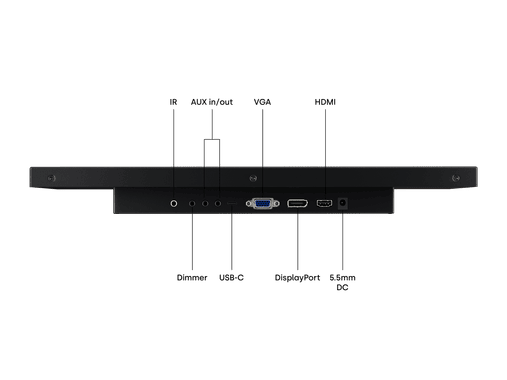

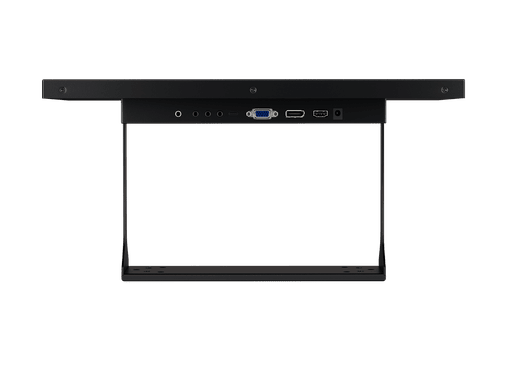

Connectivity
HDMI
1x
DisplayPort
1x
VGA
1x
USB-C
1x Video, Audio, Touch
USB-A
Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.
AUX Input (3.5mm)
1x
AUX Output (3.5 mm)
1x
Size & Weight
Colour
Black
Dimensions (Without Stand)
16.0 x 9.4 x 1.6 Inches
Active Area
13.5 x 7.6 Inches
Weight
5.9 lbs (7.7 lbs With Stand)
Technical Drawing
3D Drawing
Features & Functions
Audio
Integrated Speakers
Auto-On
Automatically powers on when it receives current or a signal.
Dimmable
Adjustable Backlight Brightness
Orientation
Landscape, Portrait, Face-up
Power
Input Voltage
DC 9-33V
Consumption
Typical 11.2 W (On), 0.4 W (Standby)
Power Supply
External DC (Power Adapter Included)
Power Adapter
Input: AC100-240V, 50/60Hz , Output: 12V-3A
Power Adapter Output Connector
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
20% - 85% Non-Condensing
Mounting
VESA 75x75mm
Flush Mount
Mounting Strips Included
Stand
Adjustable and Detachable
Certifications & Standards
IP65 Front Panel
Impact Protection
IK08
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC

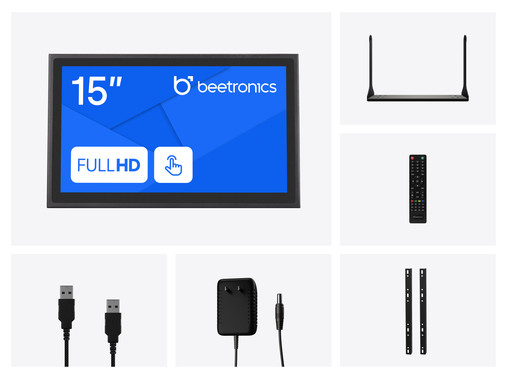

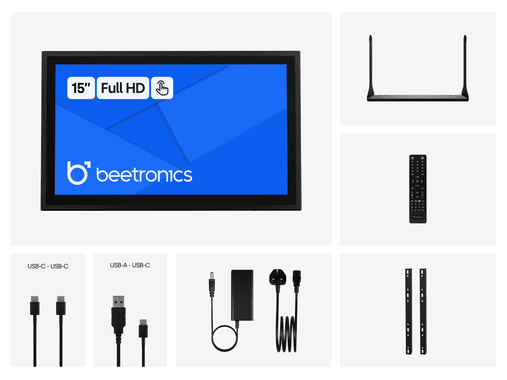

Package Content
Includes
Touchscreen, USB Cable, Remote Control, AC Power Adapter, Stand, Installation Strips, Manual
Compatible Accessories
Infrared Extension
Compatible With Infrared Extender (IRC7)
Dimmer
Compatible With External Dimmer (DMK7/DMK8)
Rack Mounting
Compatible With 19 Inch Rack Mount Kit (RMK2)
Wall Mounting
Compatible With Flat Wall Mount Bracket (VWB1)
Stand
Compatible With VDK3 Collapsible Stand
Touch Pen
Compatible With CTS7 Capacitive Touchscreen Stylus
15 Inch Touchscreen Metal
Downloads
User Manual
Quickstart
Technical Drawing
3D Drawing
Datasheet
Product name Model In Stock Quantity Price
15 Inch Touchscreen Metal
15 Inch Touchscreen Metal $615.00
15TS7M
$615.00
Wall Mount Bracket, Flat
VWB1
$35.00
Metal Stand (13 to 17 Inch Displays)
VDK6
$55.00
Capacitive Touchscreen Stylus
CTS7
$15.00
HDMI Cable - 6 Feet
KHD2
$19.00
External Dimmer - 16 Feet
DMK7
$29.00
External Multi-Dimmer - 16 Feet
DMK8
$59.00
