General
Manufacturer
Beetronics
Item Number
22SDI7M
Product Name

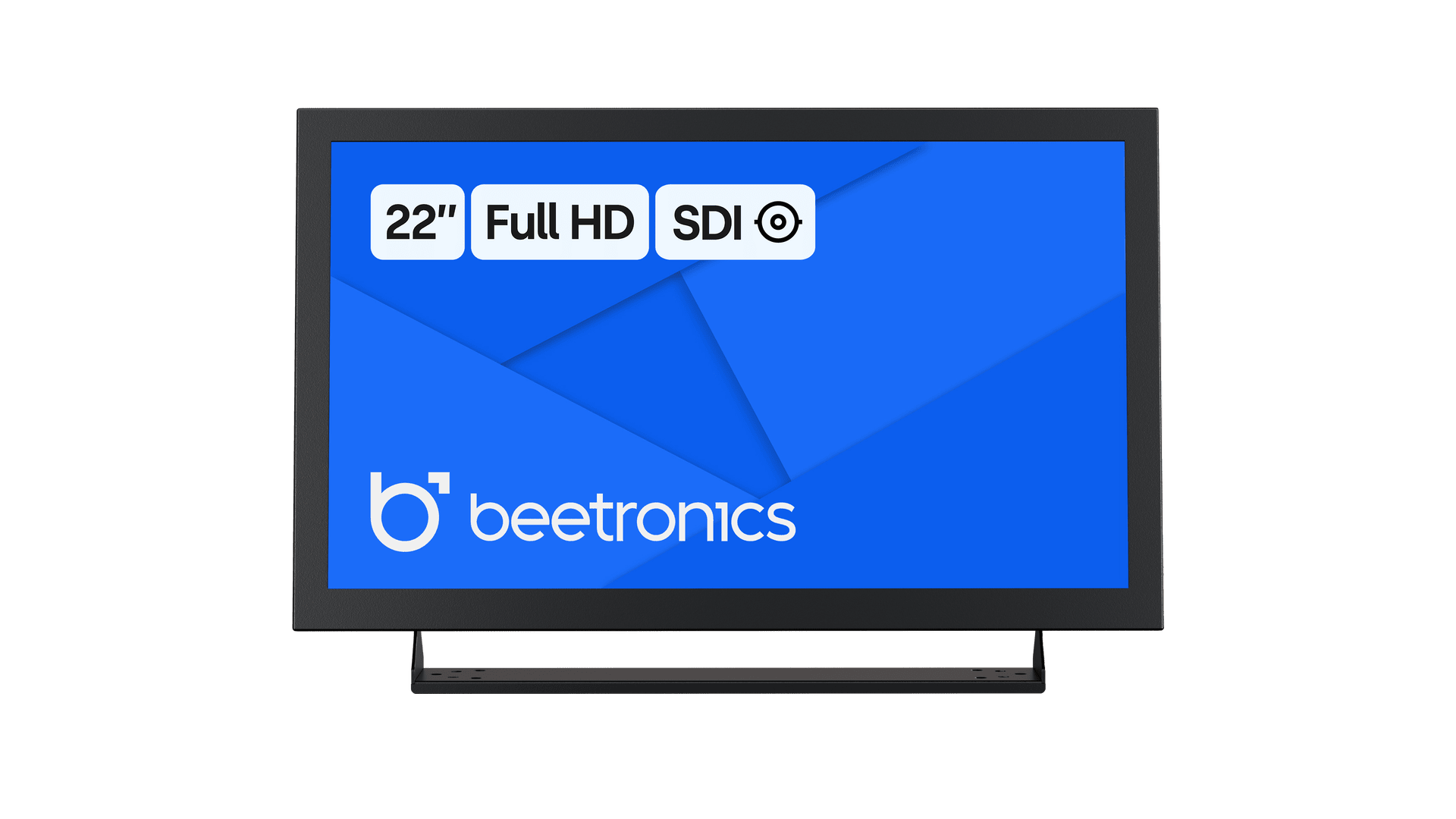

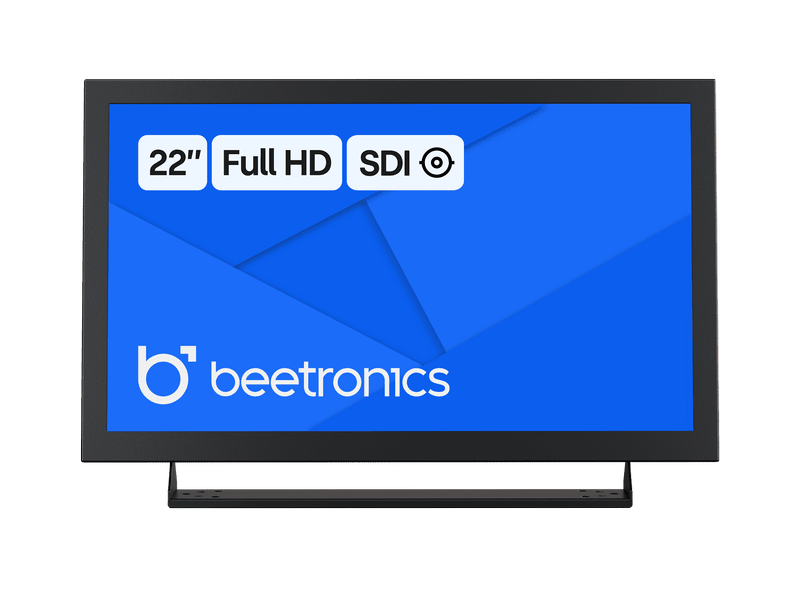

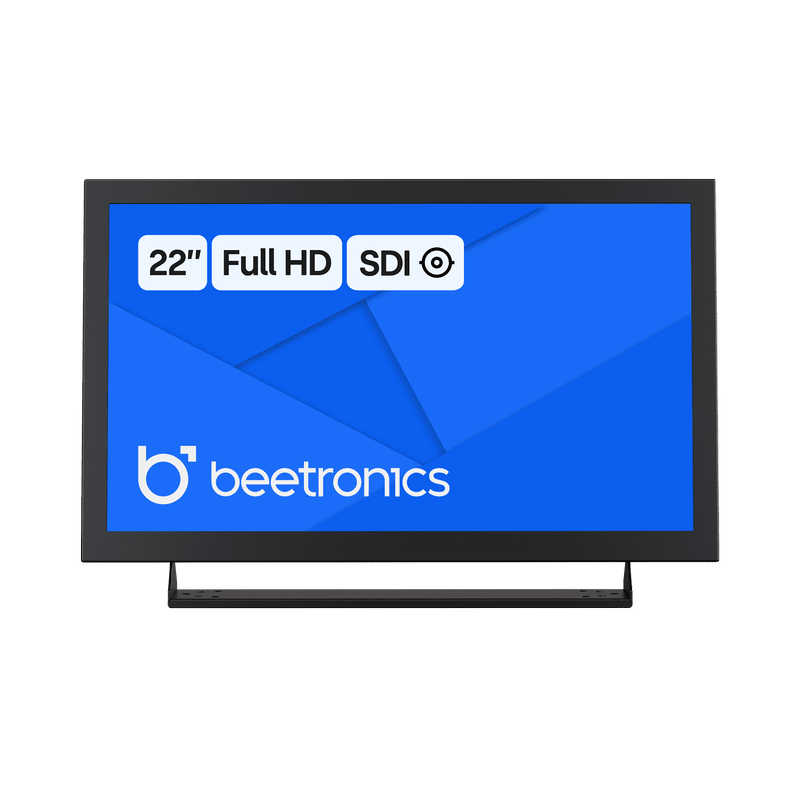

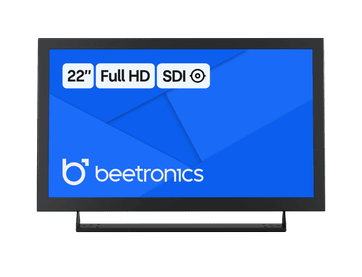

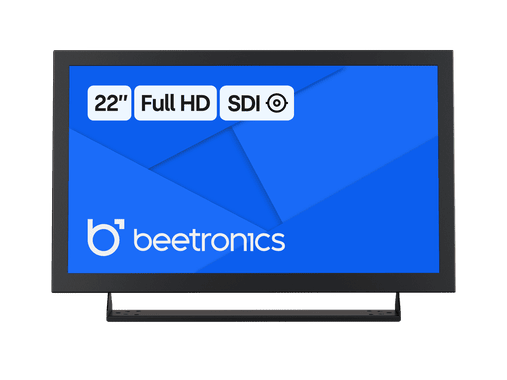

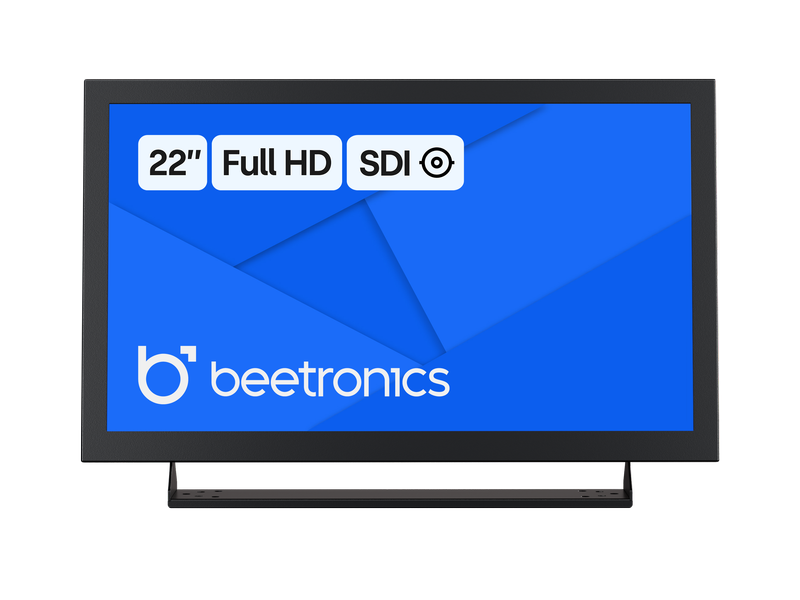

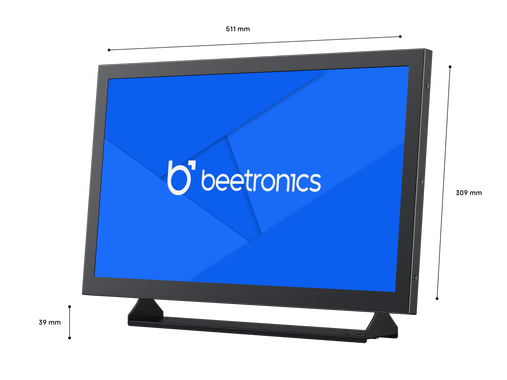

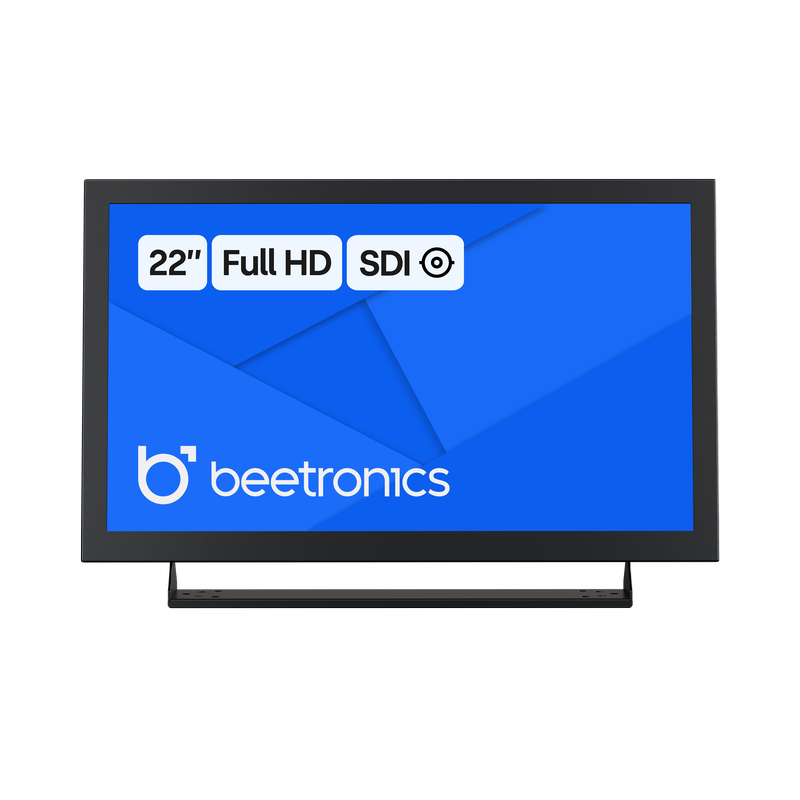

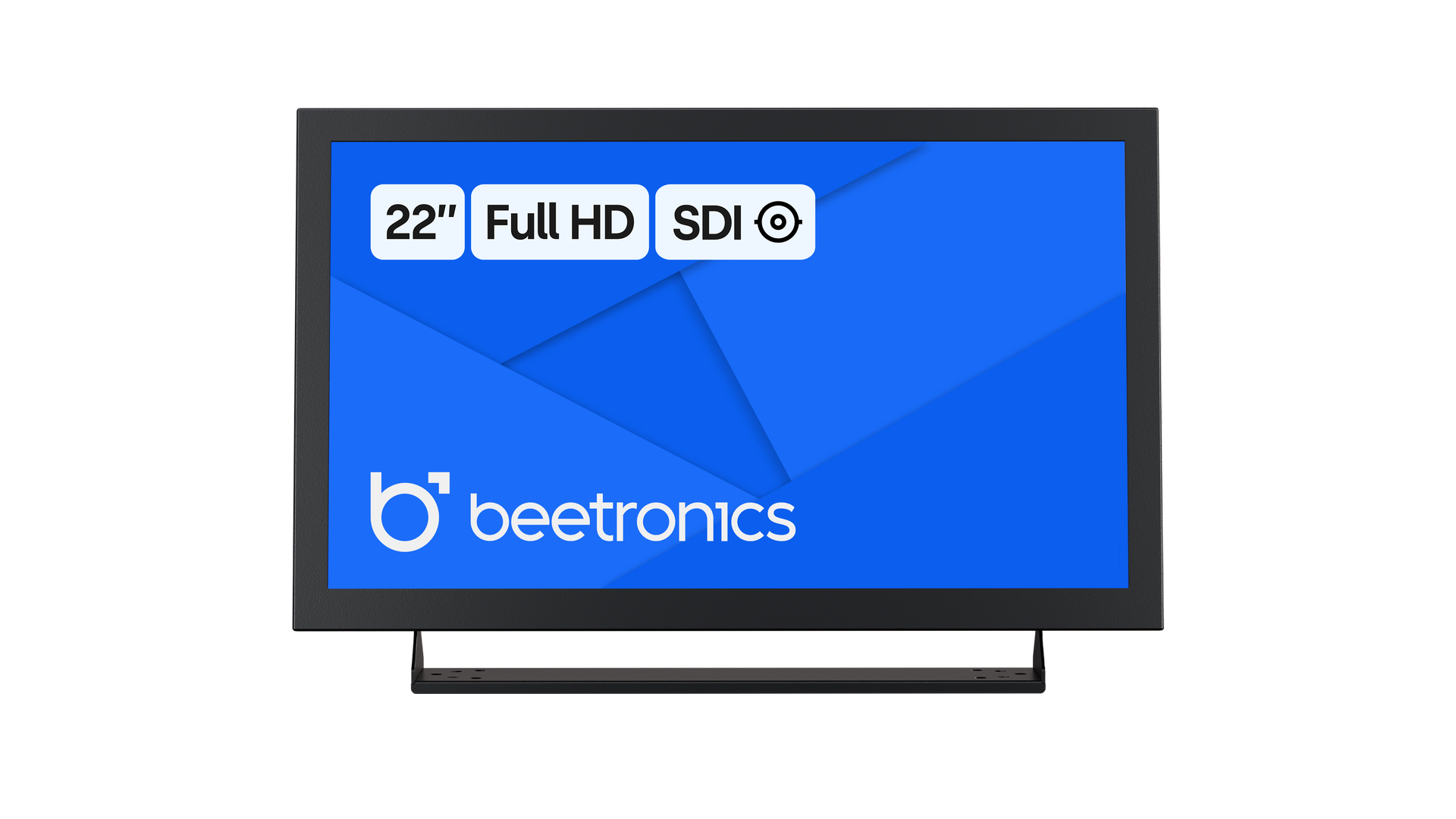

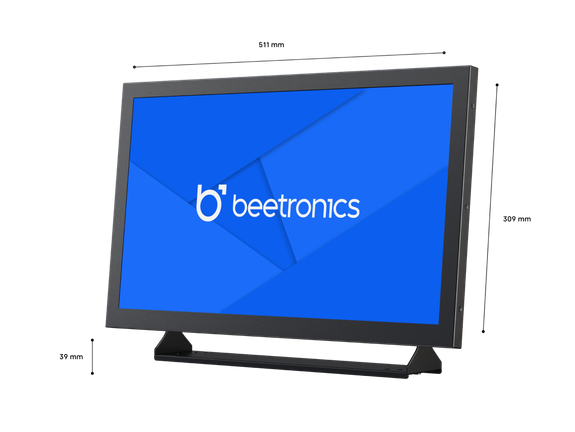

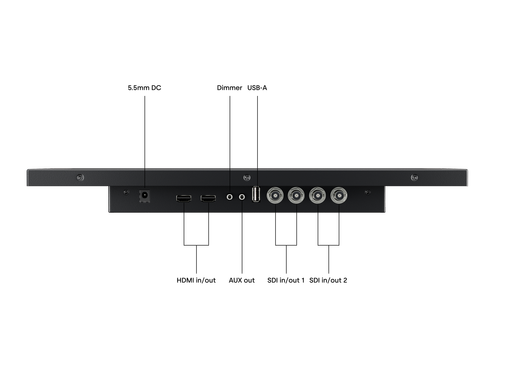

22 Inch Monitor Metal SDI
Warranty
2 Years
Datasheet
User Manual
Quickstart
Panel
21.6 Inches (549 mm)
IPS-LCD
16:9 (4:3 Adjustable)
10 ms
50K
1920 x 1080
1920 x 1080 (max), 640 x 480 (min)
102 PPI
LED
250 cd/m2
3000:1
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical

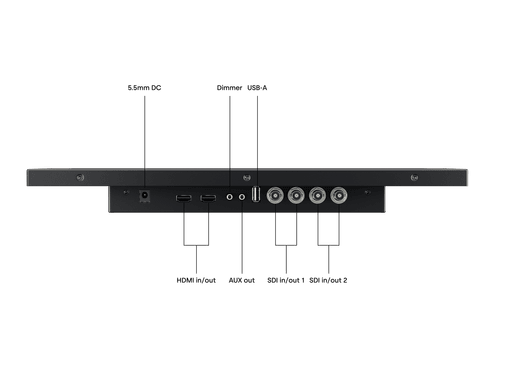

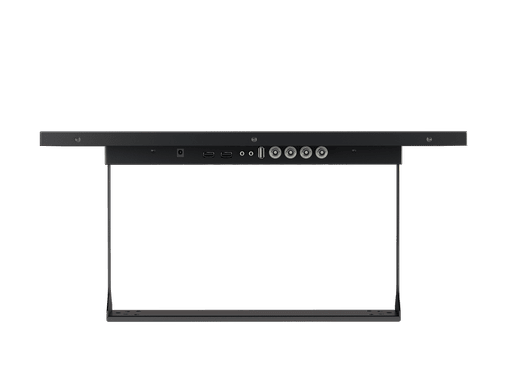

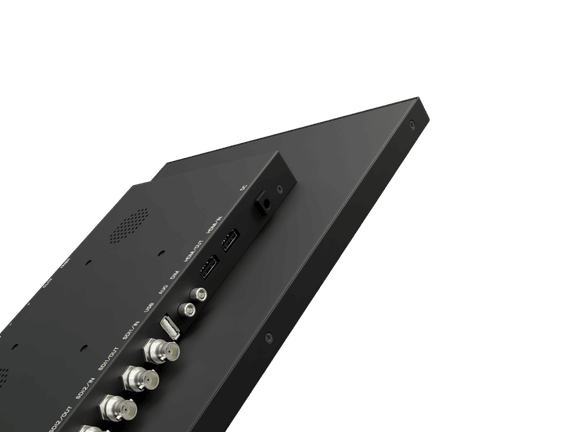

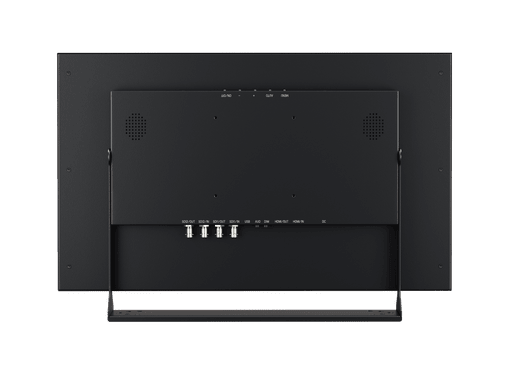

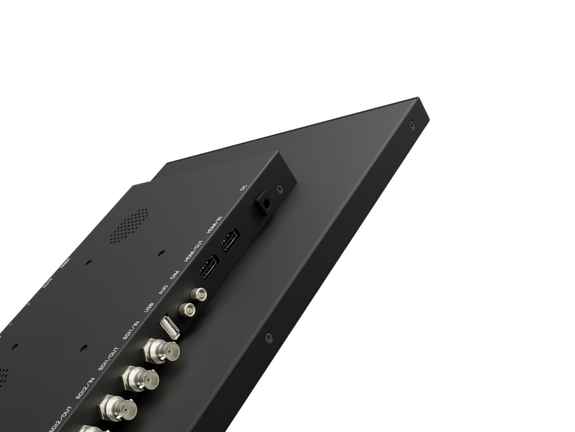

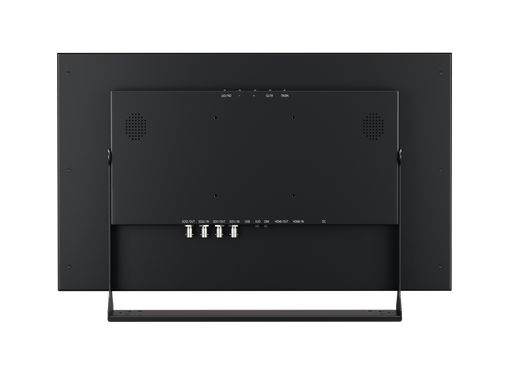

Connectivity
1x
HDMI output
1x
1x Integrated USB Media Player
2x
SDI output
2x
1x
1x
Size & Weight
Colour
Black
Dimensions (Without Stand)
20.1 x 18.8 x 1.7 Inches
18.8 x 10.6 Inches
9.5 lbs (11.5 lbs With Stand)

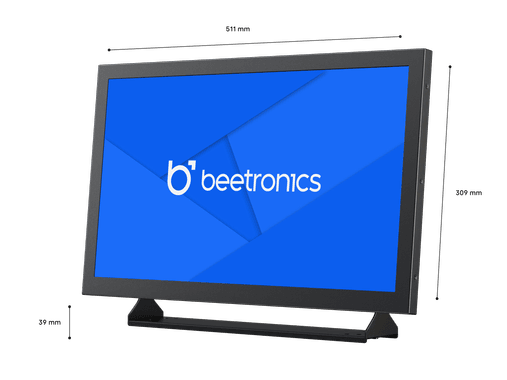

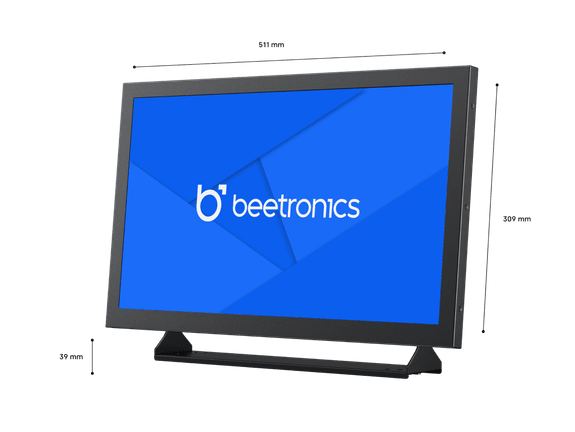

Technical Drawing

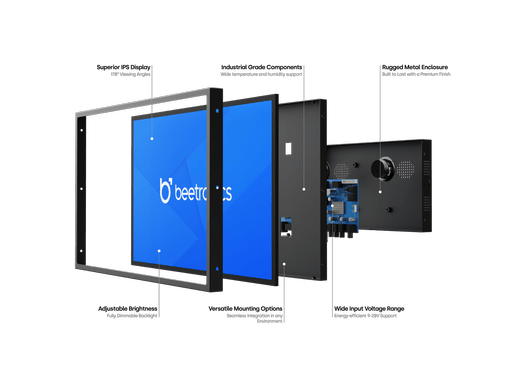

3D Drawing
Features & Functions
Integrated Speakers
Key-Lock
The control buttons can be blocked.
Automatically powers on when it receives current or a signal.
Adjustable Backlight Brightness
Mirroring
Teleprompter compatible. Image can be horizontally and vertically mirrored.

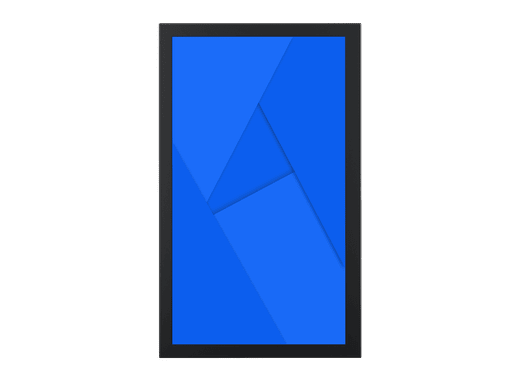

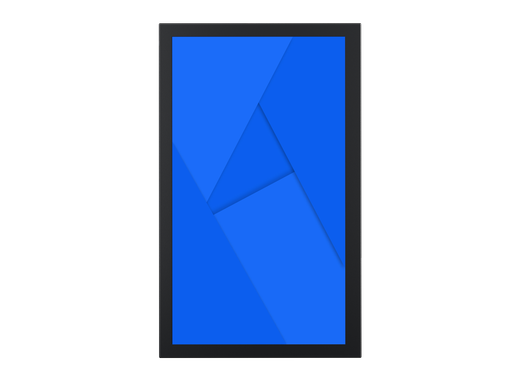

Landscape, Portrait, Face-up
The monitor is equipped with a built-in USB media player.
Power
DC 9-36V
Typical 24.0 W (On), 0.4 W (Standby)
External DC (Power Adapter Included)
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
20% - 85% Non-Condensing

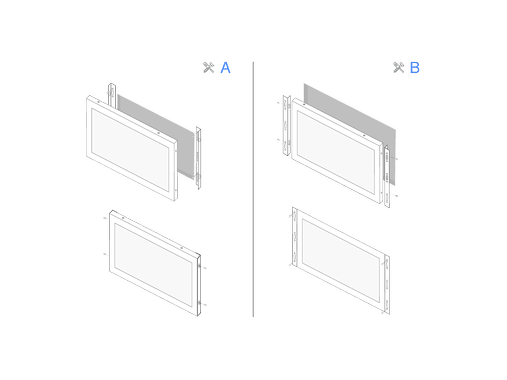

Mounting

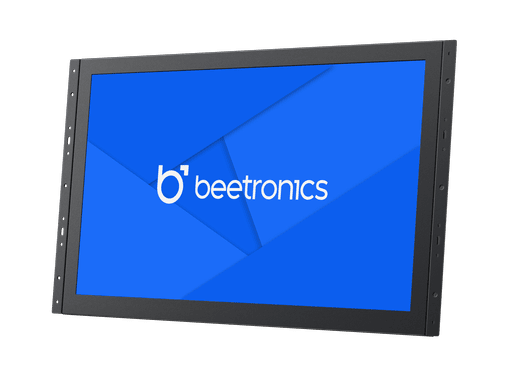

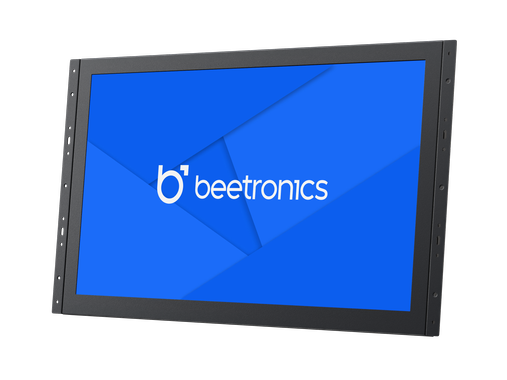

Flush Mount

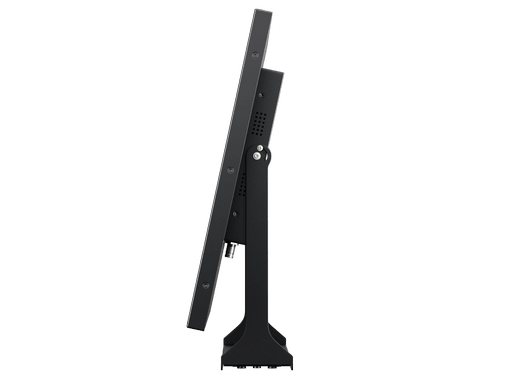

Stand
Adjustable and Detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC

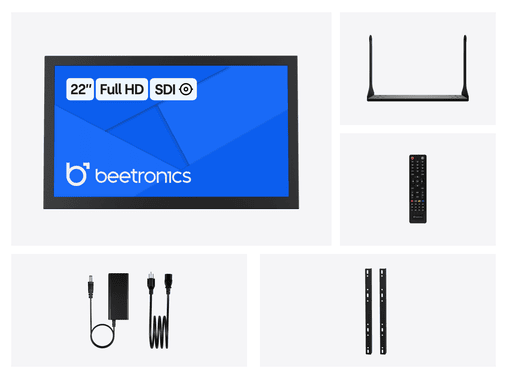

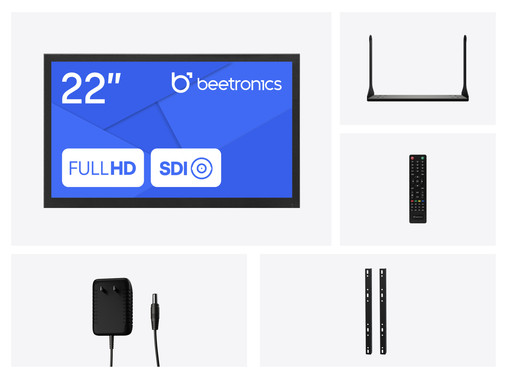

Package Content
Includes
Monitor, Stand, Remote Control, Mounting Strips, AC Power Adapter, Manual
