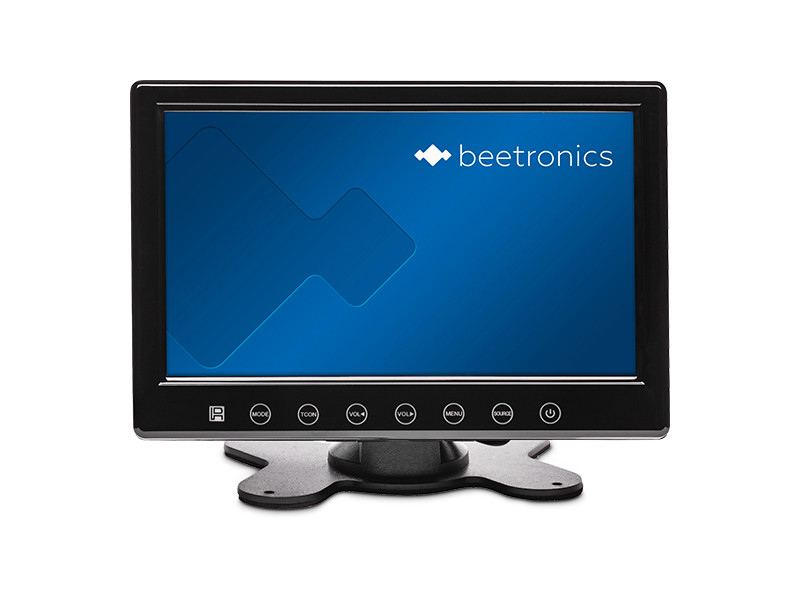

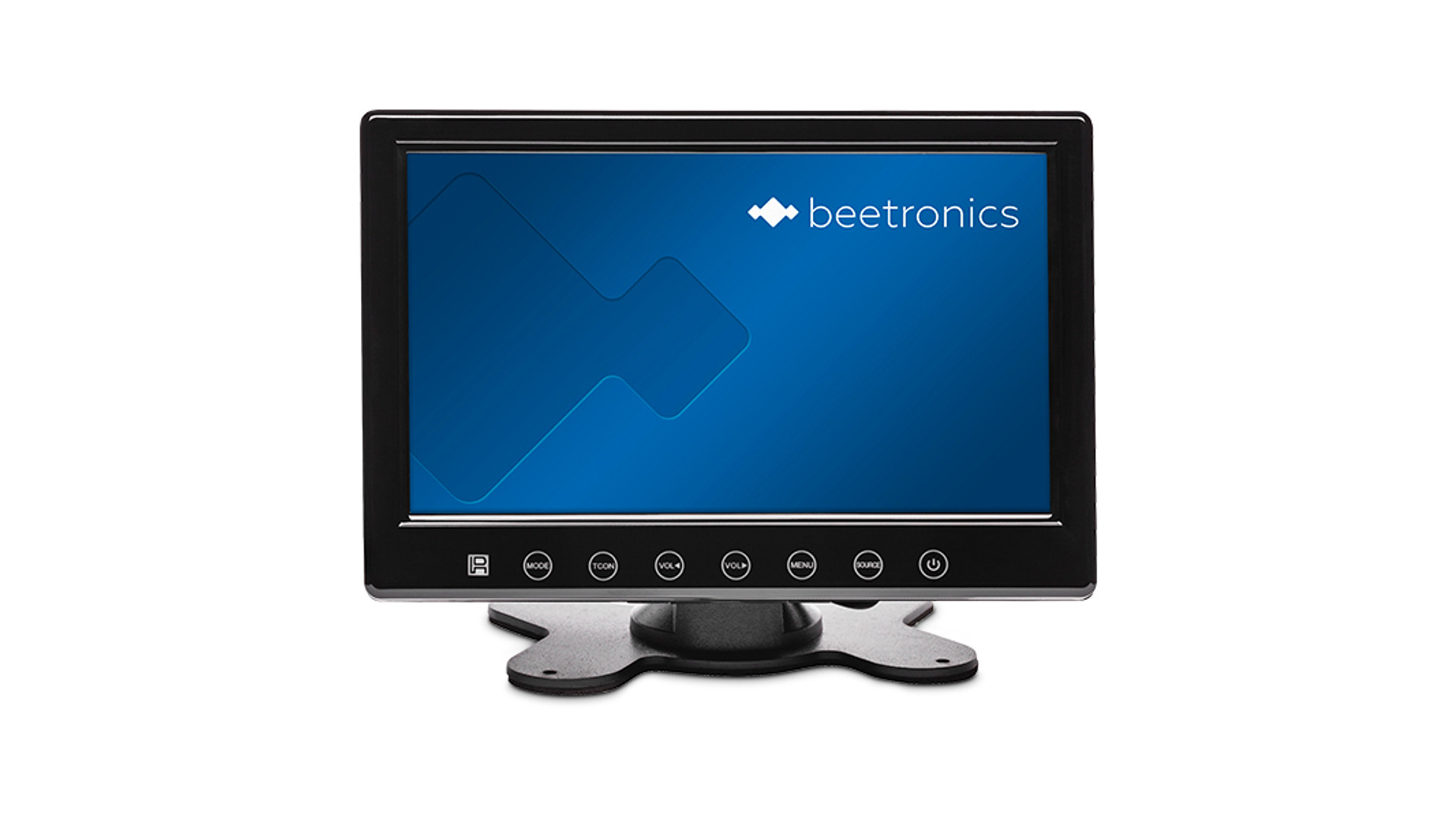

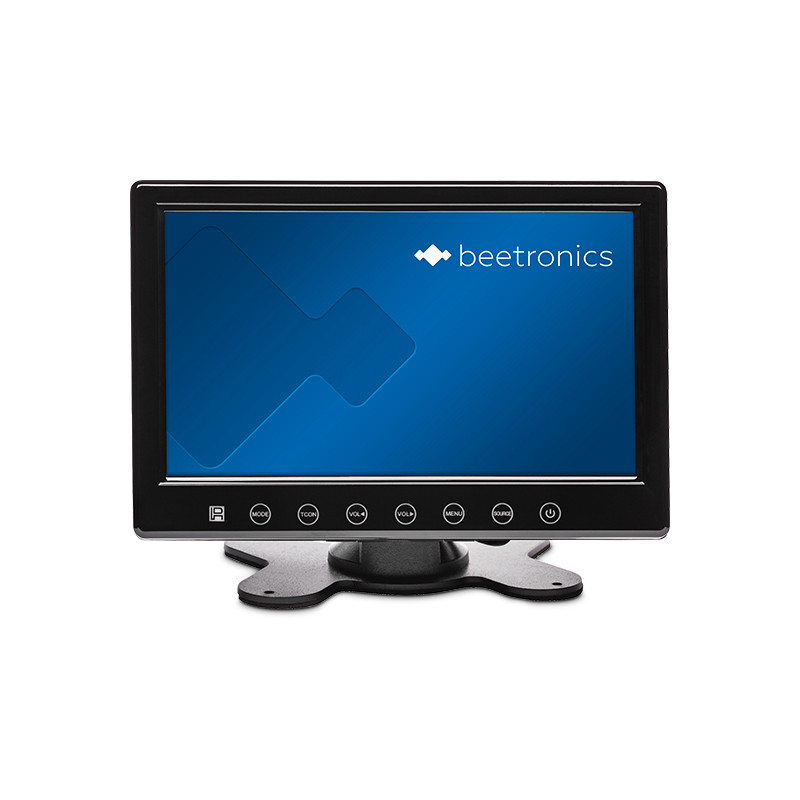

7 inch monitor

Model: 7TF4

Product Information

Excellent image quality (up to Full HD)
Input: HDMI, VGA and RCA
Desktop, flush and wall mountable
179 x 119 x 22 mm

End of life

See alternative

General

Manufacturer

Beetronics

Item Number

7TF4

Product Name

7 inch monitor

Warranty

2 Years

Datasheet

Download PDF

Panel

Diagonal Size

7.0 Inches (178 mm)

Aspect Ratio

16:10 (16:9, 4:3 Adjustable)

Native Resolution

1280 x 800

Supported Resolutions

1920 x 1080 (max), 640 x 480 (min)

Pixels Per Inch

215 PPI

Brightness

300 cd/m2

Contrast

350:1

Colour Encoding System

PAL/NTSC/SECAM

Viewing Angle

178° Horizontal, 178° Vertical

Connectivity

HDMI

1x

VGA

1x

RCA Video

1x

Size & Weight

Colour

Black

Monitor size (WxHxD)

179 x 119 x 22 mm

Mounting frame (outer)

200 x 139 x 25 mm

Mounting frame (inner)

184 x 124 x 23 mm

Technical Drawing

Download PDF

Features & Functions

Audio

Integrated Speakers

Auto-On

Automatically powers on when it receives current or a signal.

Mirroring

Teleprompter compatible. Image can be horizontally and vertically mirrored.

Mounting

Wall Mount

Montageframe inbegrepen

Flush Mount

Montageframe inbegrepen

Stand

Adjustable and Detachable

2D Drawing (PDF) Datasheet (PDF)
