General
Manufacturer
Beetronics
Item Number
8VG7M
Previous Model
8VG3

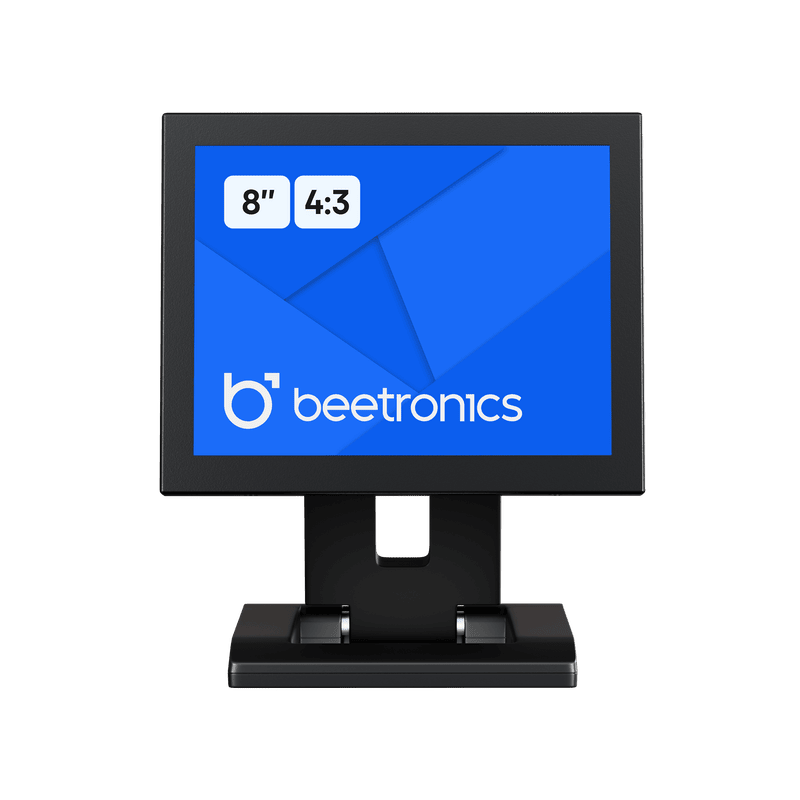

Product Name

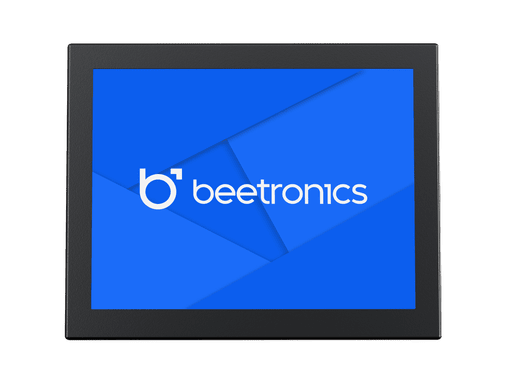

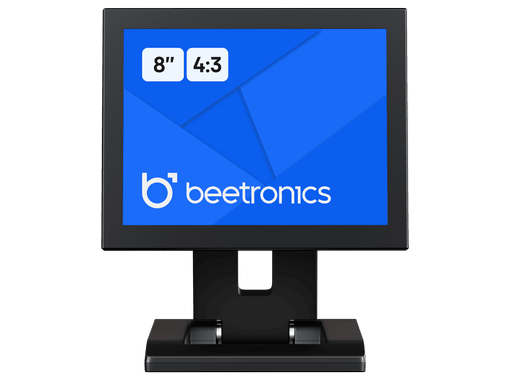

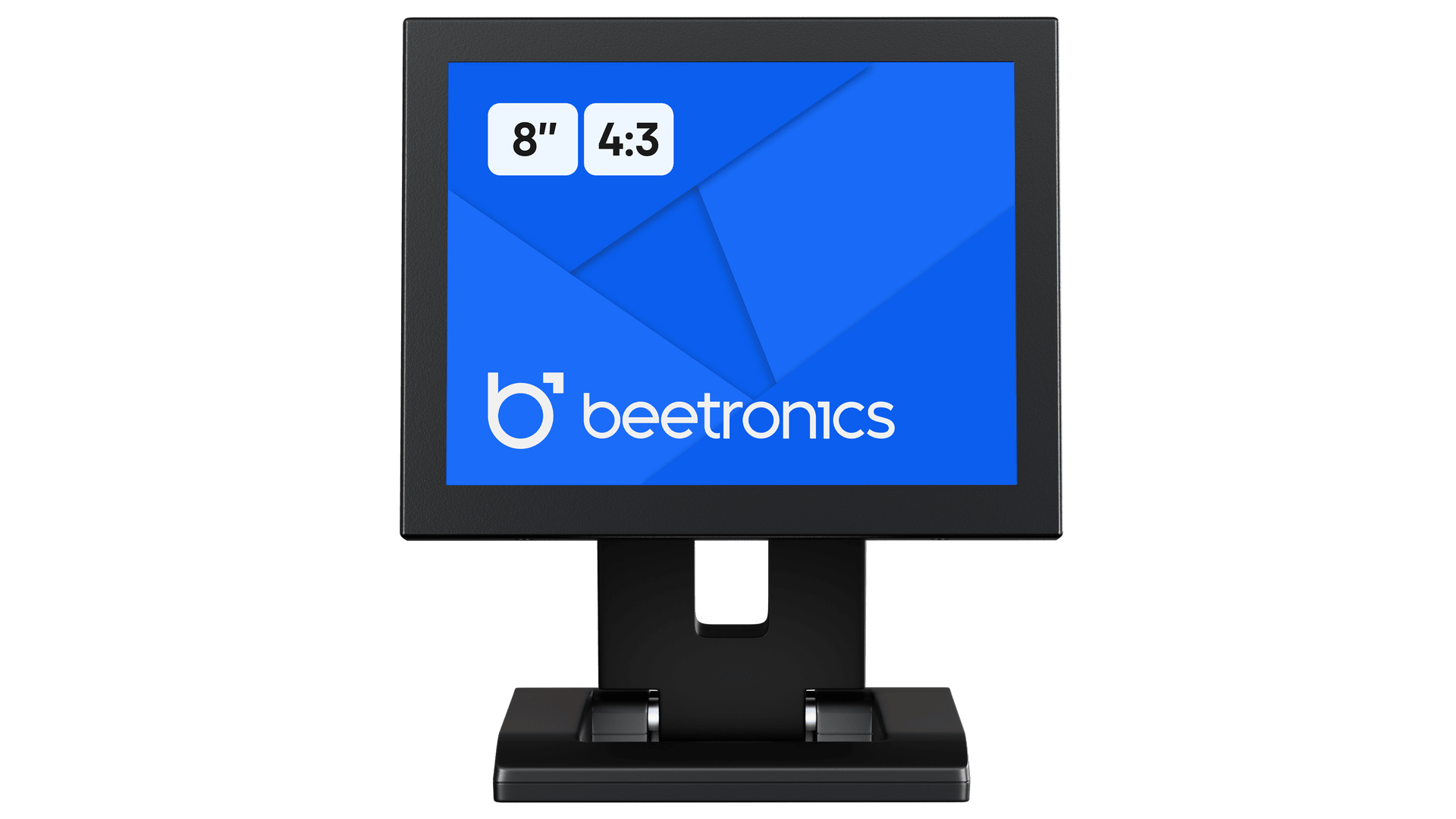

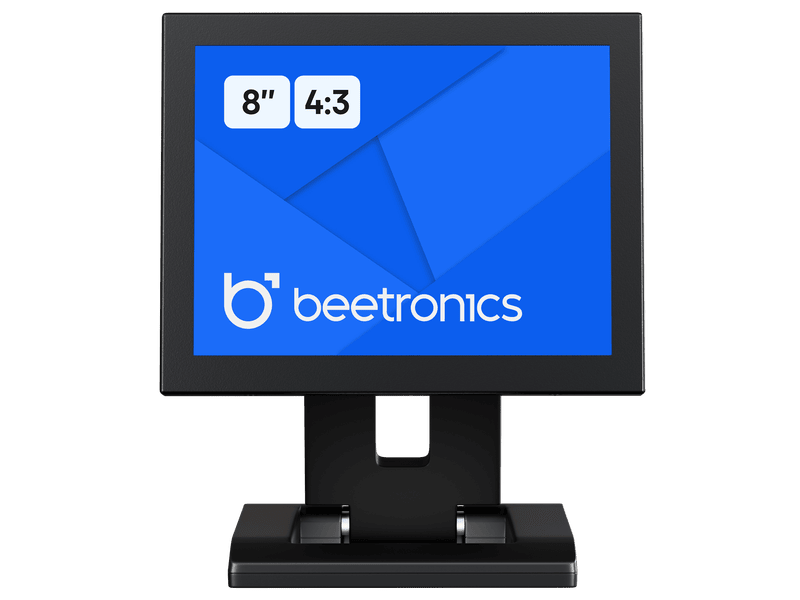

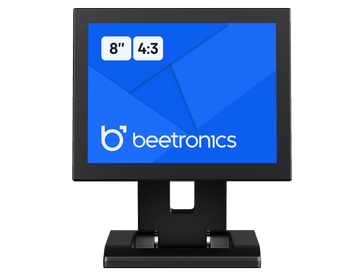

8 Inch Monitor Metal (4:3)
Warranty
2 Years
Datasheet
User Manual
Quickstart
Panel
8.0 Inches (205 mm)
IPS-LCD
4:3
10 ms
50K
1024 x 768
1920 x 1080 (max), 640 x 480 (min)
161 PPI
LED
350 cd/m2
800:1
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical

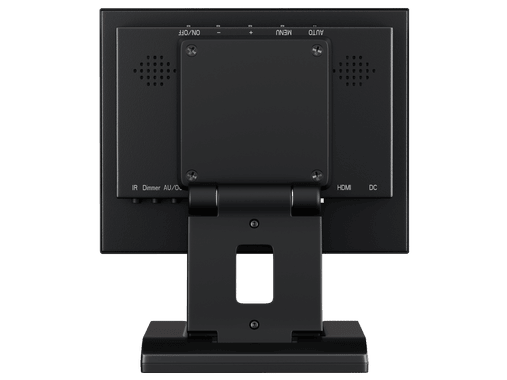

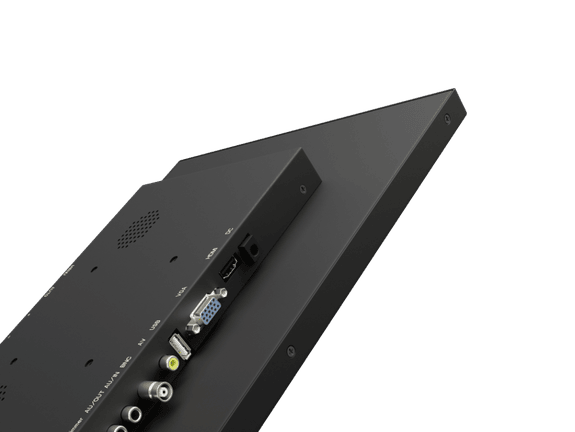

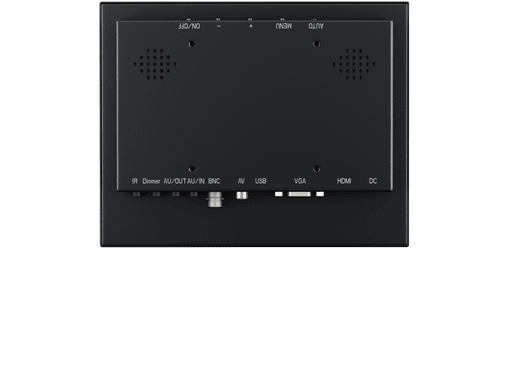

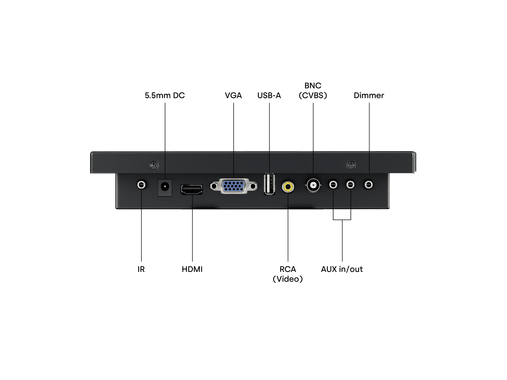

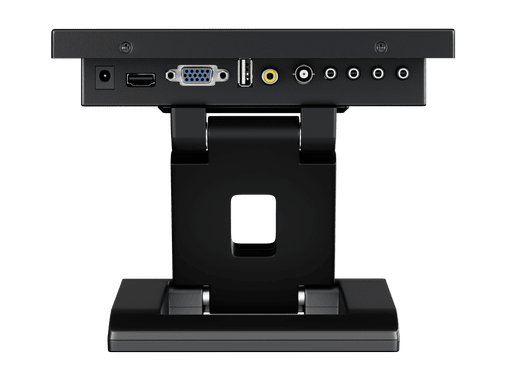

Connectivity
1x
1x
1x
1x
1x Integrated USB Media Player
1x
1x
Size & Weight
Colour
Black

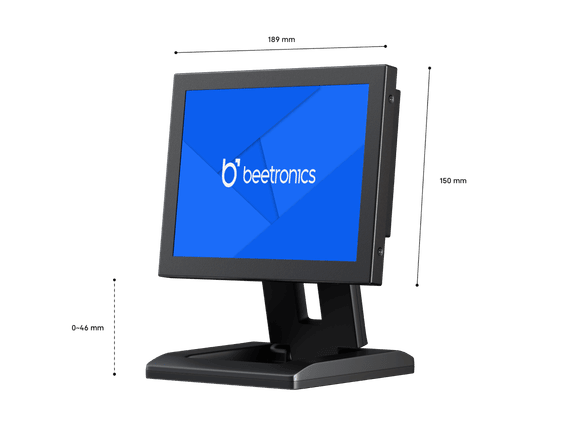

Dimensions (Without Stand)
7.4 x 5.9 x 1.5 Inches
6.5 x 4.8 Inches
1.8 lbs (2.6 lbs With Stand)

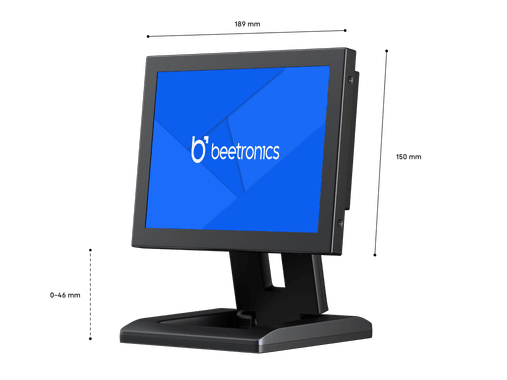

Technical Drawing
3D Drawing
Features & Functions
Integrated Speakers
Automatically powers on when it receives current or a signal.
Landscape, Portrait, Face-up
The monitor is equipped with a built-in USB media player.
Power
DC 9-36V
Typical 8.4 W (On), 0.4 W (Standby)
External DC (Power Adapter Included)
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-4°F to +140°F
Storage Temperature
-4°F to +158°F
Operating Humidity
20% - 85% Non-Condensing
Mounting

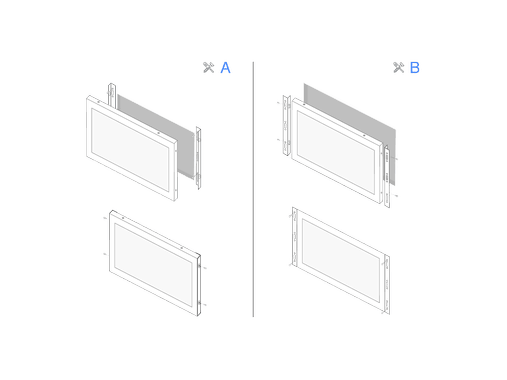

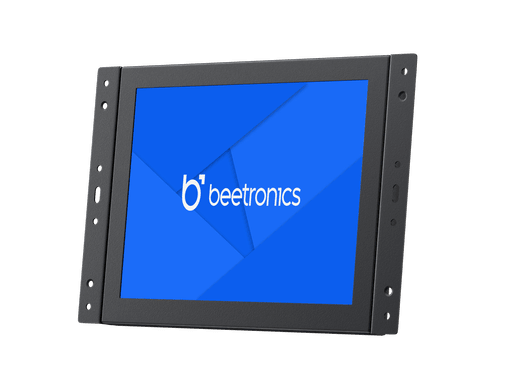

Flush Mount

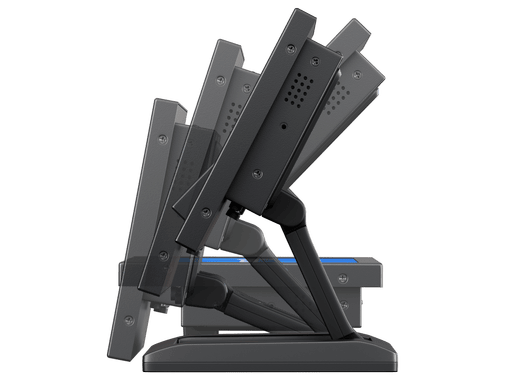

Stand
Adjustable and Detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC, CAN ICES-003(A)/NMB-003(A)

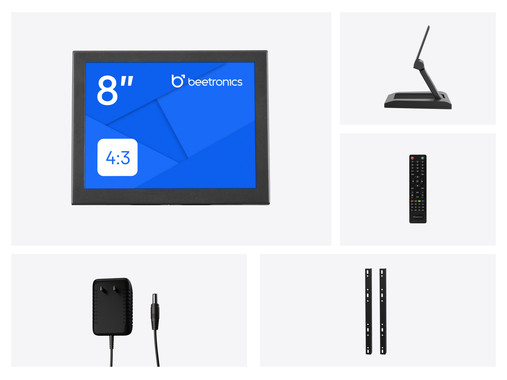

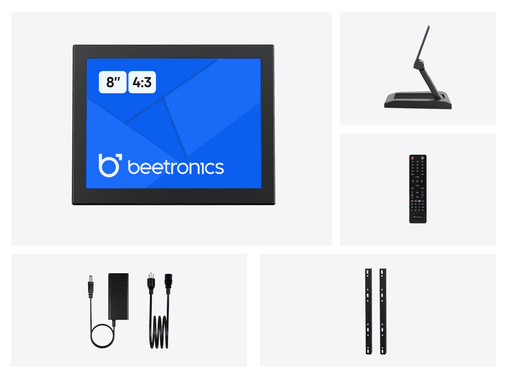

Package Content
Includes
Monitor, Stand, Remote Control, Mounting Strips, AC Power Adapter, Manual
Compatible Accessories
Infrared Extension
Dimmer
Rack Mounting
Wall Mounting
Stand
VDK3 Included as Standard
